Maintenance
53
sensor, then stop the machine until the excess
load is removed from the platform.
b
a

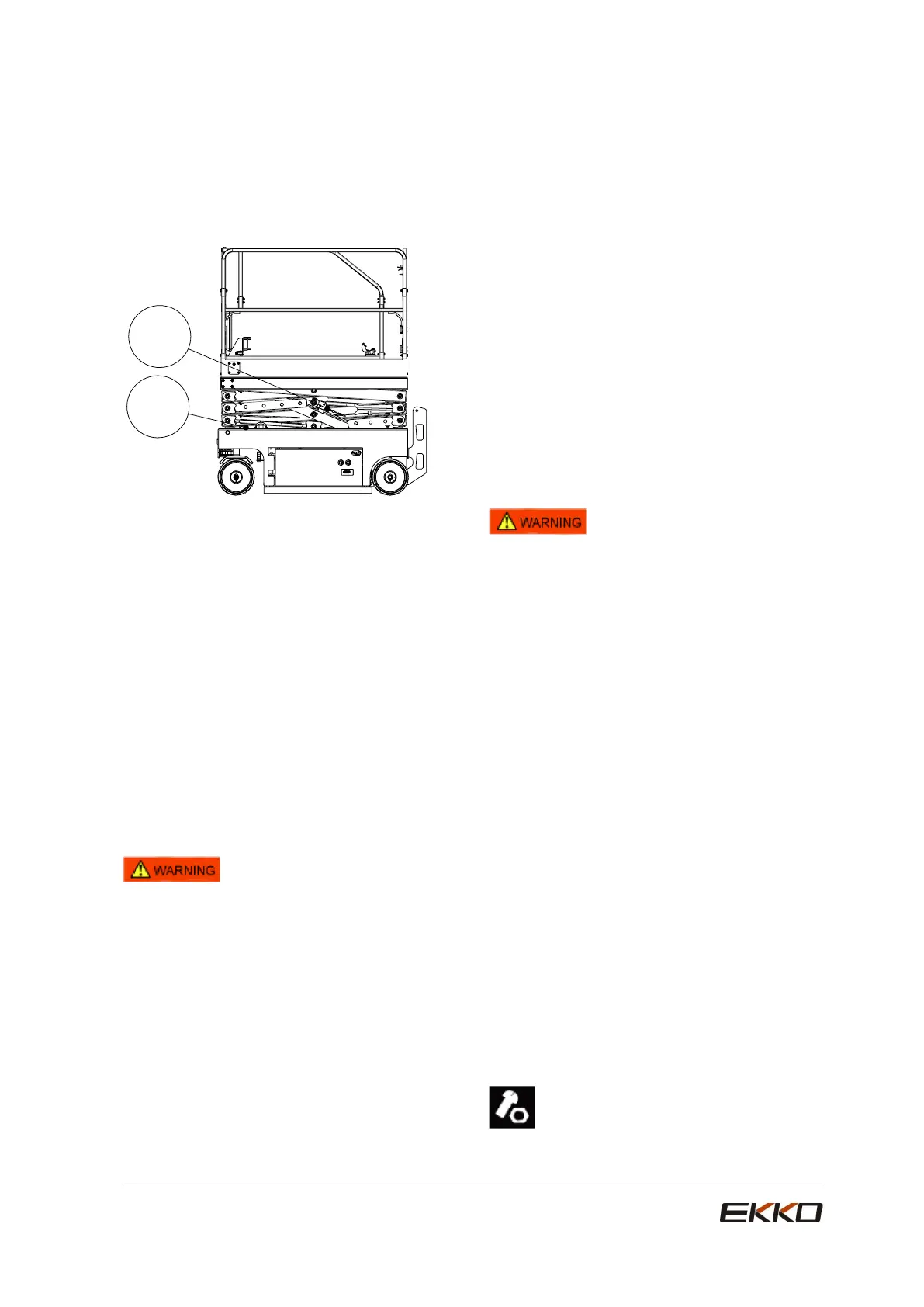

a. Angle Sensor
b. Pressure Transducer
The angle sensor located at scissors axis is
used to measure the angle between the
internal and external scissors and determine
the platform level.
1. Turn the key switch to ground control and
raise the platform approximately 2.5 m
2. Lift the safety arm, move it to the center of
the scissor arm and rotate up to a vertical
position.
3. Lower the platform onto the safety arm.
Crushing hazard
Keep hands clear of the safety arm when
lowering the platform.
4. Disconnect the up-limit switch.
5. Use a wire to short circuit the up-limit
switch connector from main cable.
6. Turn the key switch to the off position and
push in the red Emergency Stop button to
the off position.
7. Raise the platform a little to return the
safety arm.
8. Raise the platform to the highest position
and continue to press the up function
select button.
⊙ Result: The motor does not operate. The
machine is functioning properly.
¤ Result: The motor continue to operate.
Calibration the platform overload system.
9. Lower the platform to the stowed position
by manually drop function.
10. Lift the safety arm, move it to the center of
the scissor arm and rotate up to a vertical
position.
11. Lower the platform onto the safety arm.
Crushing hazard
Keep hands clear of the safety arm when
lowering the platform.
12. Dismantle the short circuit wire of up limit
switch carefully.
13. Connect the connector of up limit switch.
14. Raise the platform to the highest position
and continue to press the up function
select button.
⊙ Result: The motor does not operate. The
machine is functioning properly.
¤ Result: The motor continue to operate.
Platform overload system is abnormal.
Exclude fault of the limit switch, limit switch
wire and mounting bracket, Or the overload
system needs calibration.
15. Lower the platform to the stowed position.
C-2
Replace the Hydraulic Tank Breather
Cap
