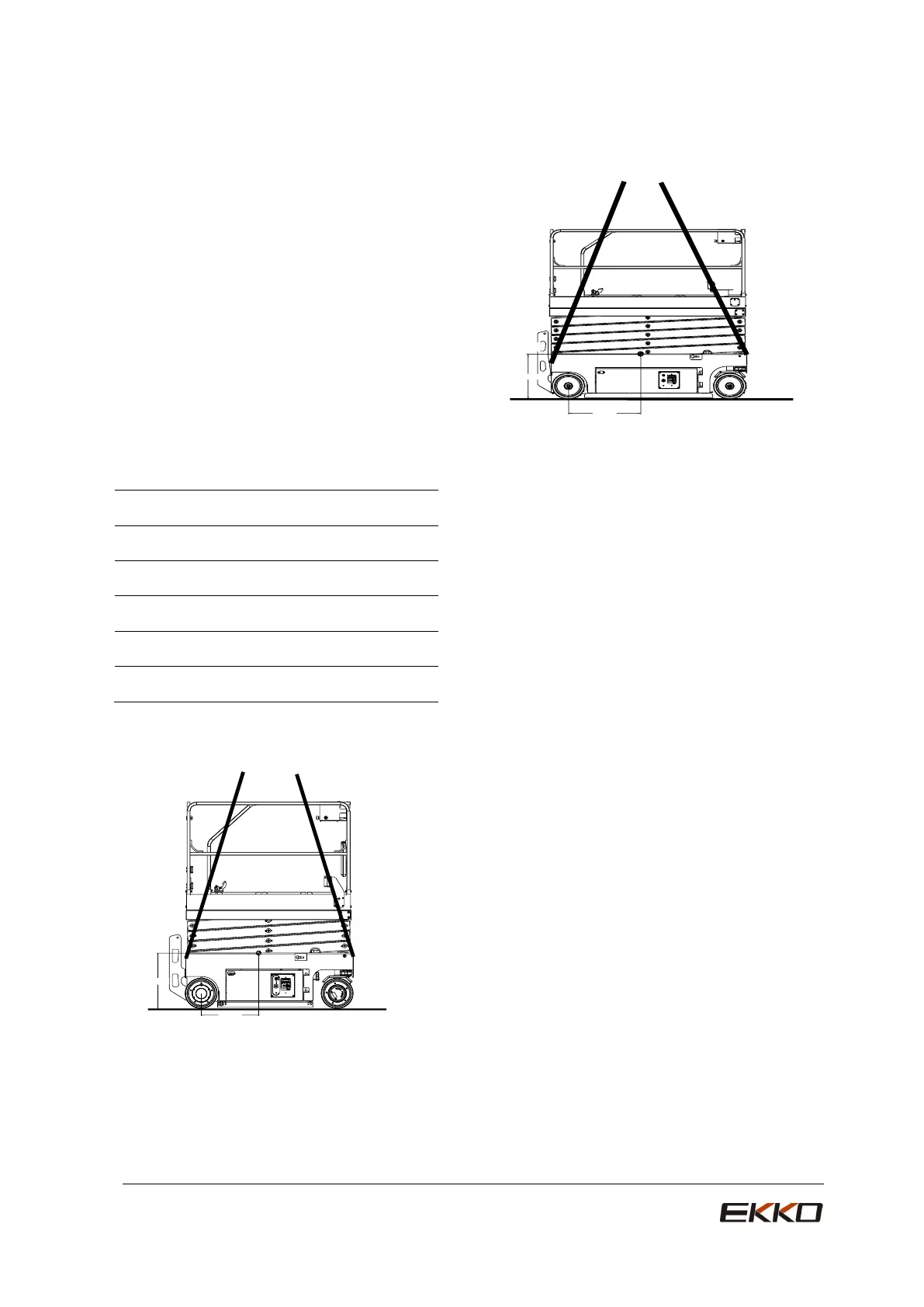

Transporting And Lifting Instructions
33
Lifting instruction
Fully lower the platform. Be sure the extension
deck, controls and component trays are
secure. Remove all loose items on the
machine.
Determine the center of gravity of your
machine using the table and the picture on this
page.
Attach the rigging only to the designated lifting
points on the machine. There are two lifting
holes int each end of the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
core
X SHAFT
YSHAFT
ES40E
19.64 Inch
18.93 Inch
ES60E
25.35 Inch
20.75 Inch
ES80E
33.66 Inch
23.54 Inch
ES100E
32.80 Inch
25.43 Inch
ES120E
33.46 Inch
28.90 Inch
A110000 19A110000 19
G
R
M
E
E
Y
C
N
E
O
P
T
S
Chassis
Lifting
Points(2)
Chassis
Lifting
Points(2)
Y-Axis
X-Axis
ES40E/ES60E
Y-Axis
X-Axis
Chassis
Lifting
Points(2)
Chassis
Lifting
Points(2)
ES80E,ES100E,ES120E
