Drilling with Water
If you are cooling the drill bit with water a water collection ring is recommended.
This will be mounted with a latch fastener on the screws of the base plate and
ensures a clean drilling. Mainly for overhead or lateral drilling. (see spezial-
accessories page 12)
Demounting the core drill unit
Move the machine holder with the core drill upwards until it locks in the final
top position.
Remove the drill bit.
Loosen the clamping screw at the machine holder and remove the core drill
machine from the drill rig. (see page 16)
Loosen the fastening nut (F) (see page 14)
While doing so, hold the drill rig firmly!
Remove the drill rig.
Unscrew the quick action clamping screw (D) (see page 14).

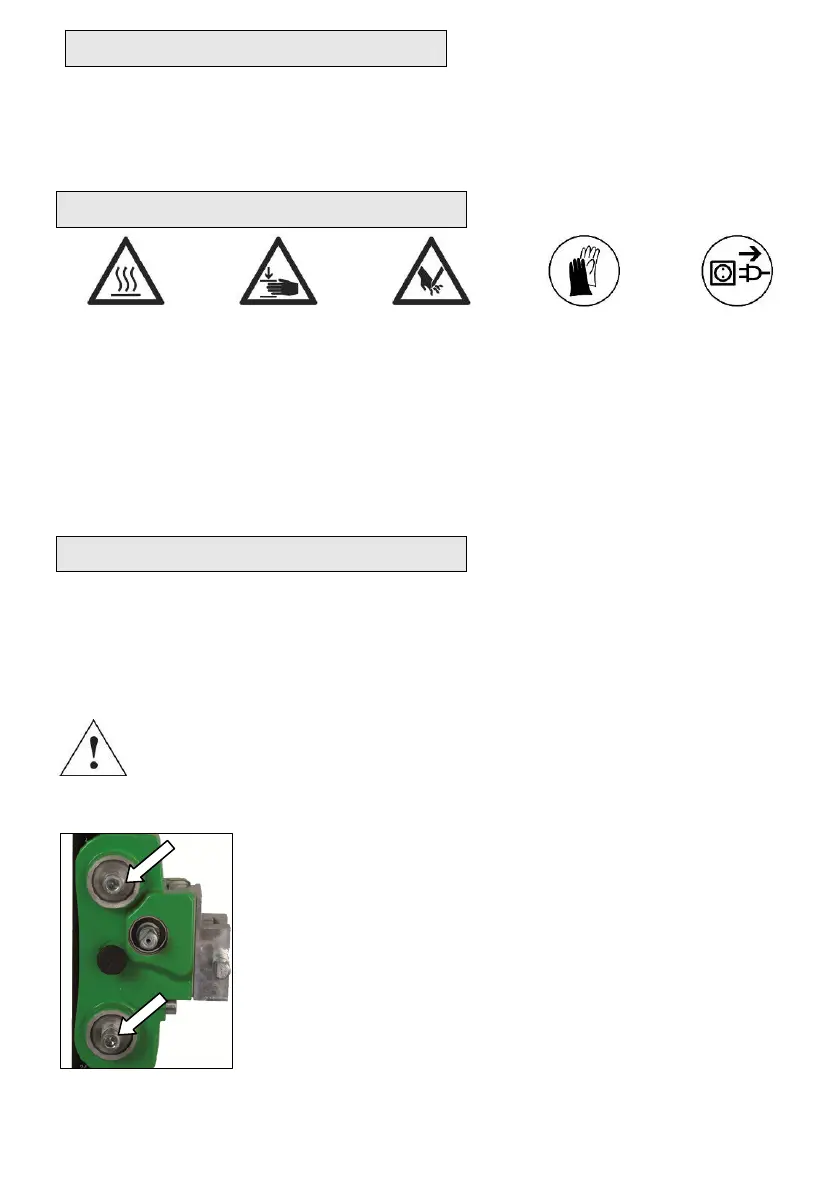

Care and maintenance
Always keep the drill rig clean, especially the column with the toothing and the
4 sliding balls in the machine holder. In order to allow the free movement of
the pinion shaft, it should be slightly lubricated.
In order to achieve a good performance of the drill rig, the 4 sliding balls in
the machine holder have to move along the column without slackness.
If the position should have changed, it can be readjusted as follows:
Loosen the counter nut on the Allen screw by means
of an jaw wrench SW 17
Adjust the Allen screws and the position of the
sliding balls to the column by means of a hex head
wrench SW 8.
Tighten the counter nut again and check whether the
carriage moves easily on the column.
Attention
!
After every tenth drilling you should check if the sliding pieces
have got loose-fitting due to drilling vibration.
