13

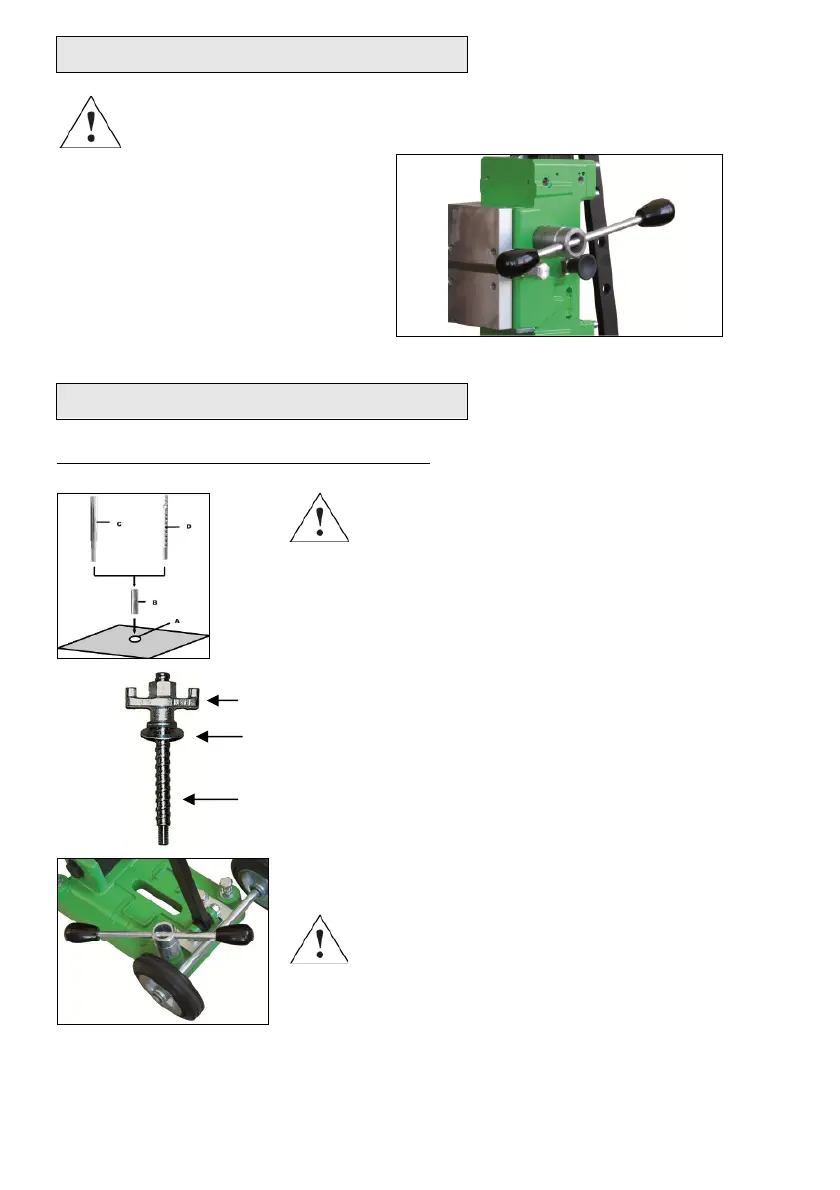

Use
After each readjustment always check that the screws are
tightly fixed so that safe operating of the drill rig is possible.
Mounting the turnstile
Mount the turnstile (1) on the
right or left side of the carriage
(2) depending on the work to be
performed.
Check whether the turnstile (1) is
fixed tightly.
Fastening of the Drill Rig
Fastening by means of dowels in concrete
For brickwork, Rawl-Dowels
must be used.
Mark the position of the drill holes for the fastening
on the surface to be drilled.
Drill a hole (Ø 15) 50 mm deep (A), into which the
dowel M12 (B) is to be placed; insert and secure
the dowel with the doweling tool (C).
Screw the quick action clamping screw (D) into the
dowel.
Install the drill rig.
Fix the washer (E) and finally the fastening nut (F)
on the quick action clamping screw (D).
Tighten the fastening nut (F) with a wrench SW 27.
Before and after tightening the nut (F), the 4
adjustable screws have to be adjusted in order to
adapt the rig to the surface.
1
2
Do check whether the drill rig
is installed safely and firmly.
D
E
F
