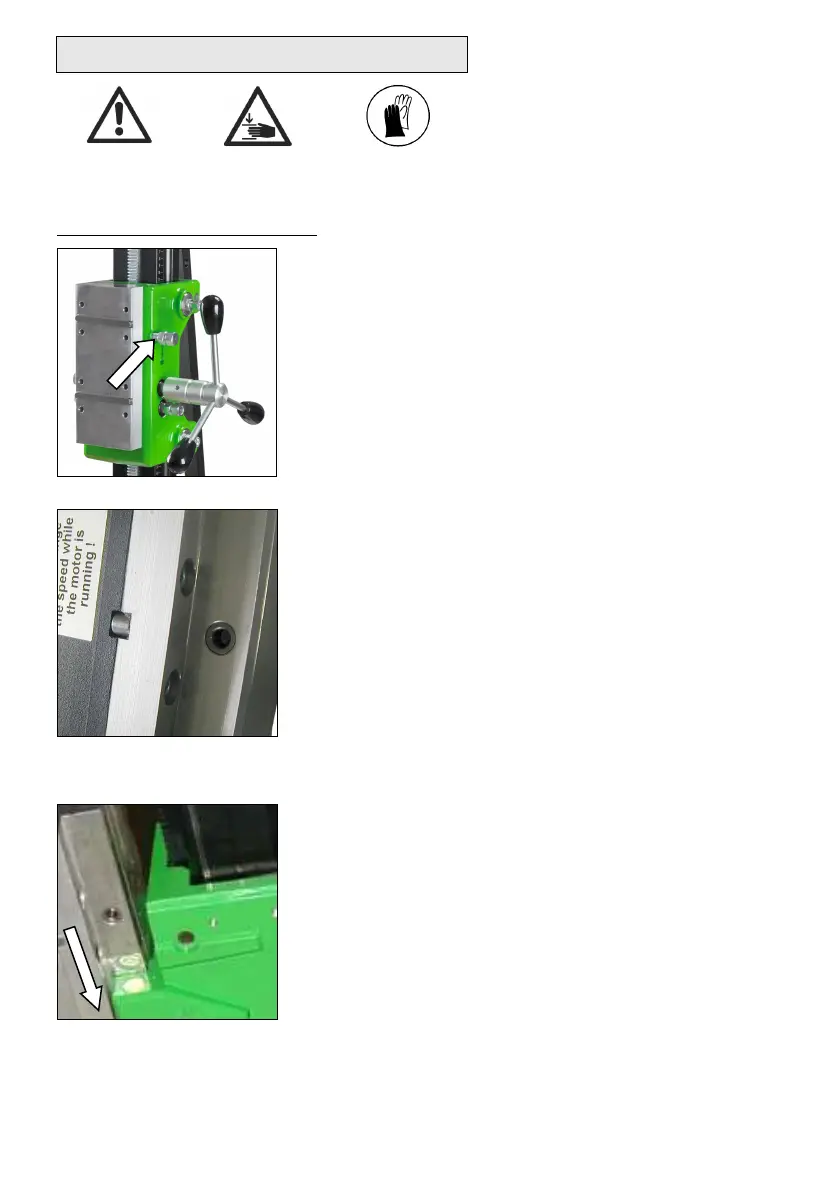

Fixing the Core Drill Motor
Caution! When mounting the machine, risk of squashing.
Wear protective gloves!
Setting up the mounting plate
The tool is supplied with a mounting plate,
a 10 mm fitting key and 8 Allen screws.
The mounting plate is put on in such a way with the
fitting key on the machine that the socket is in the
mounting plate on the same side as the gear switch
of the machine. Afterwards the four screws are
insert and tightened firmly.
Attention!
From a drill diameter of 350mm must be fitted
the included adapter plate. Use here the 4 long
screws.
For the operation of the core drill, its operating instructions and safety
advices have to be strictly observed!
Insert the core drill with the attached mounting
plate into the drill rig and lock it with the turnstile.
Move the machine holder upwards until it locks in
the top position.
Use the turnstile to open the locking device of the
mounting plate (see arrow).
Remove it and connect it to the core drill motor as
described subsequently.
