ADLN-I USER MANUAL

9

Please make sure that the cooling module is hooked to the U-shaped positioning feet.

9

English

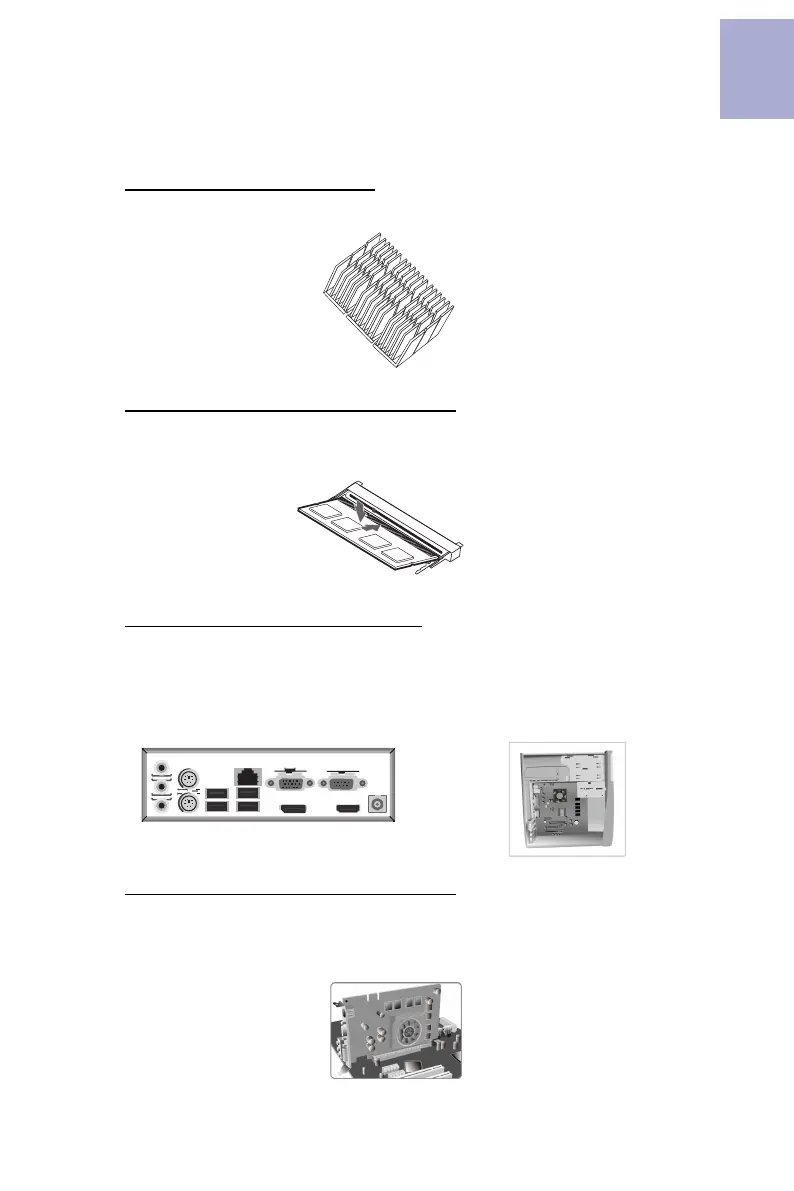

Hardware Installation Guide

Installation Steps

Step 1. Install cooling module:

Step 2. Installaon of Memory Modules:

Step 3. Installaon of Motherboard:

3-1. Replace the back I/O plate of the

case with the I/O shield provided in

motherboard’s package.

Firmly press the DIMM down un il it seats correctly. Make sure the slot latches are

levered upwards and latch on the edge of the DIMM.

3-2. Place the motherboard within the

case by posioning it into the I/O plate.

Secure the motherboard to the case

with screws.

Step 4. Installaon of an Expansion card:

Remove the metal located on the slot and then insert the expansion card into the

slot. Press the card firmly to make sure it is fully inserted into its slot. And then

return the screw back to its posion.
