7
PRECAUTIONS
PACKAGE
CONTENTS
DESCRIPTION
&
FEATURES
INSTALL
&
CONNECT
START-UP
&
OPERATION
PANEL
FUNCTIONS
TECHNICAL
DATA
4. INSTALL & CONNECT

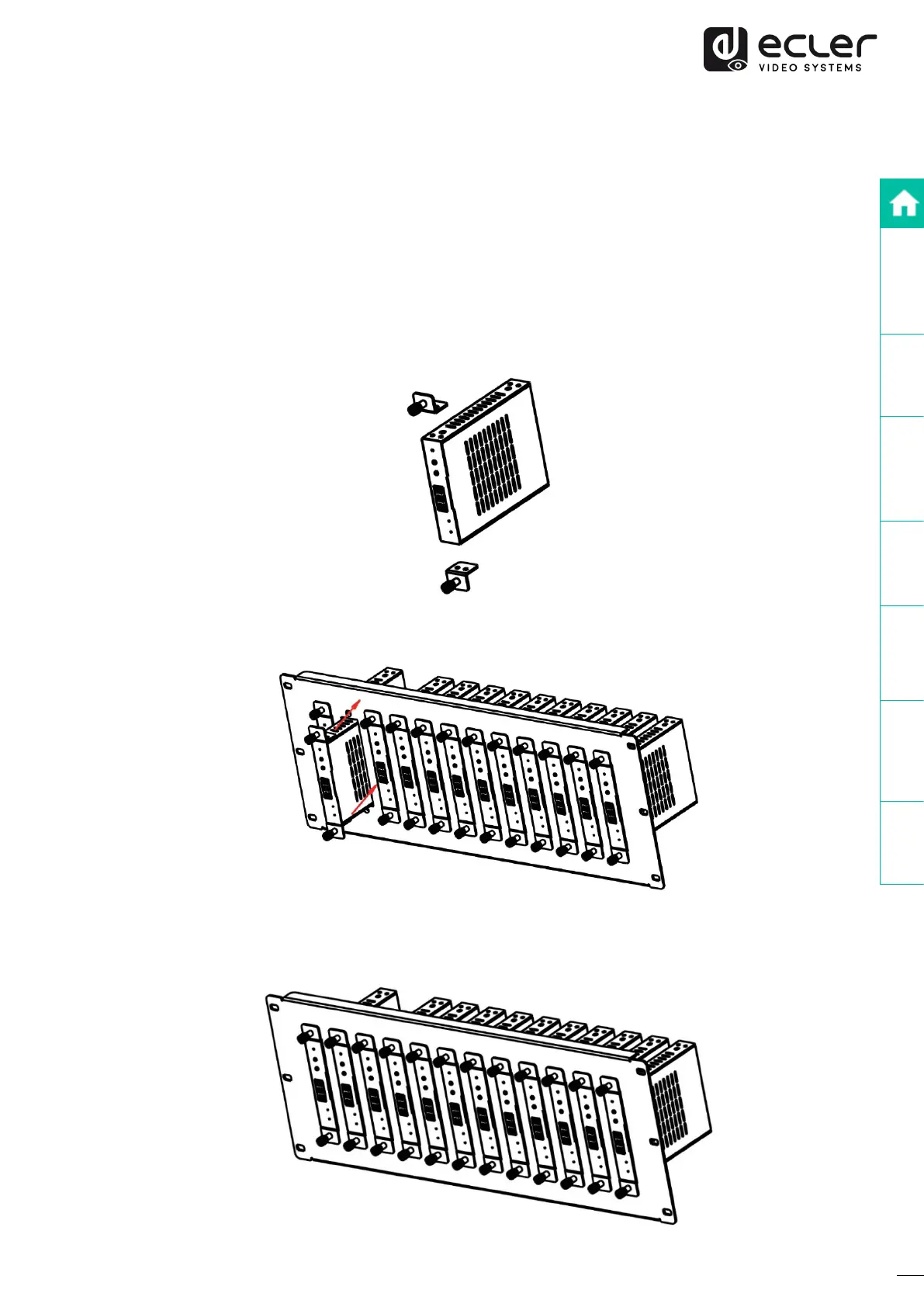

4.1 RACK MOUNTING IN VEO-RK1CG2
This product can be mounted in a VEO-RK1CG2 3U rack accessory (Please contact your
supplier for rack sale). The mounting steps are as follows:
1. Use included screws to fix two mounting ears on the product, as shown in the figure
below:
2. Insert the product with mounting ears into a 3U rack (up to 12 units can be installed
vertically), as shown in the figure below:
3. Use screws to fix mounting ears on the rack to complete the mounting, as shown in the
figure below:
