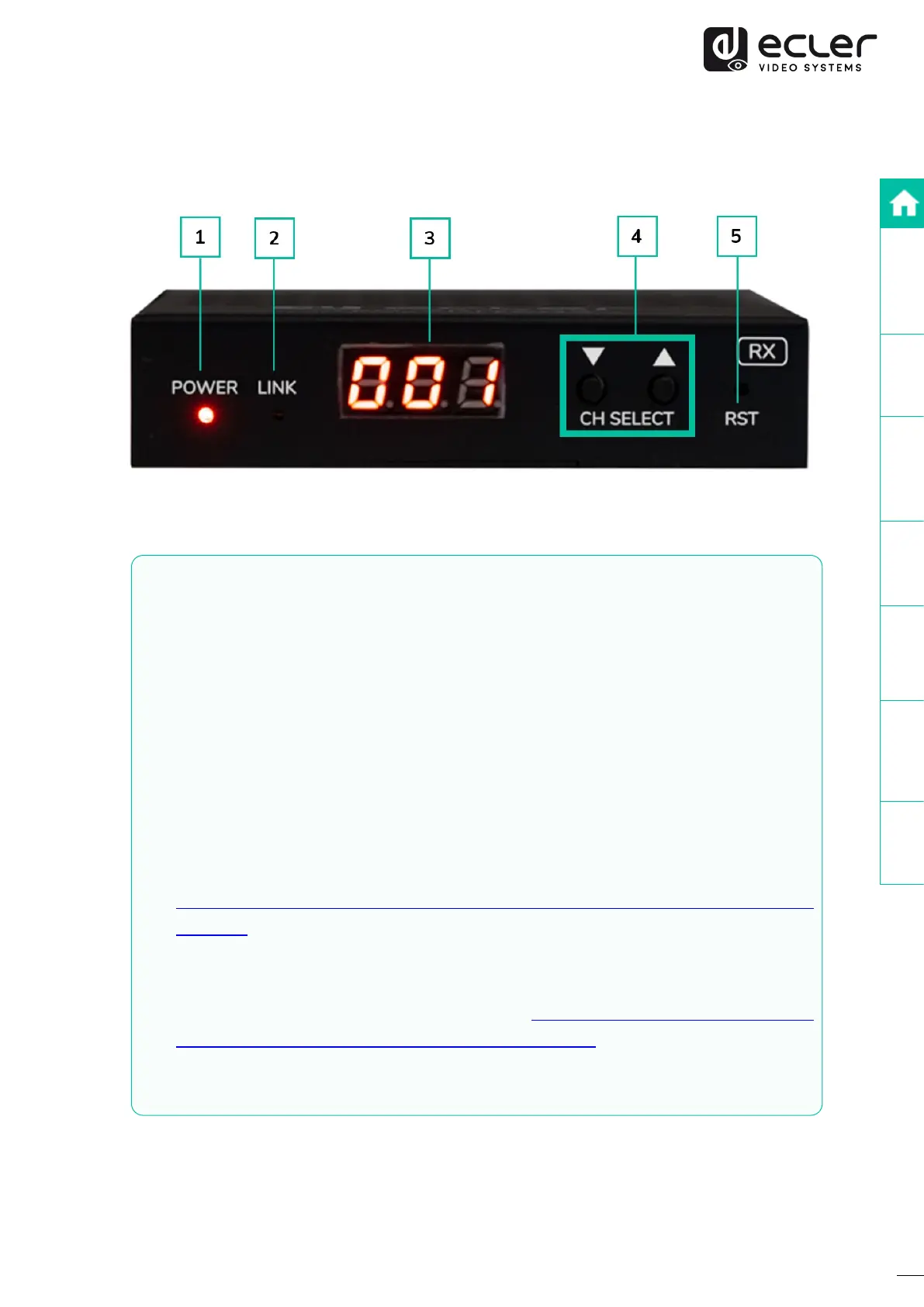

6.2 VEO-XRI1CG2 (RX, RECEIVER)
6.2.1 FRONT PANEL
1. POWER LED: The LED flashes when the device is power supplied and stays lid (RED)
after the start up is complete.
2. LINK LED: Network connection status LED:
o Light on: Network connection is stable and there’s a compatible video signal.
o Light off: No network connection.
o Light flashing (slow): Network connection is stable but there’s no video signal.
o Light flashing (fast): Network connection is stable but there’s no compatible
video signal (resolution or frame rate are greater than native).
3. STATUS DISPLAY: indicates current ID channel and further device information.
When clicking the “SHOW ME” option on the XCTRLG2, the status display will flash
“SHO” for an easier location of the corresponding device. For further details, refer to
Additional functionalities of CH select ▲/▼ buttons for both: VEO-XTI1CG2 & VEO-
XRI1CG2 chapter.
4. CH SELECT (▲UP/▼DOWN): Use these buttons to set the ID channel of the device.
It is also possible to adjust audio mode, manage EDID, consult IP address, or enter
configuration mode. For further details, refer to Additional functionalities of CH select
▲/▼ buttons for both: VEO-XTI1CG2 & VEO-XRI1CG2 chapter.
5. RESET: System reset button. Pressing and holding for 5 seconds will restart and
restore factory settings on the device.
