12
6.2 Receiver

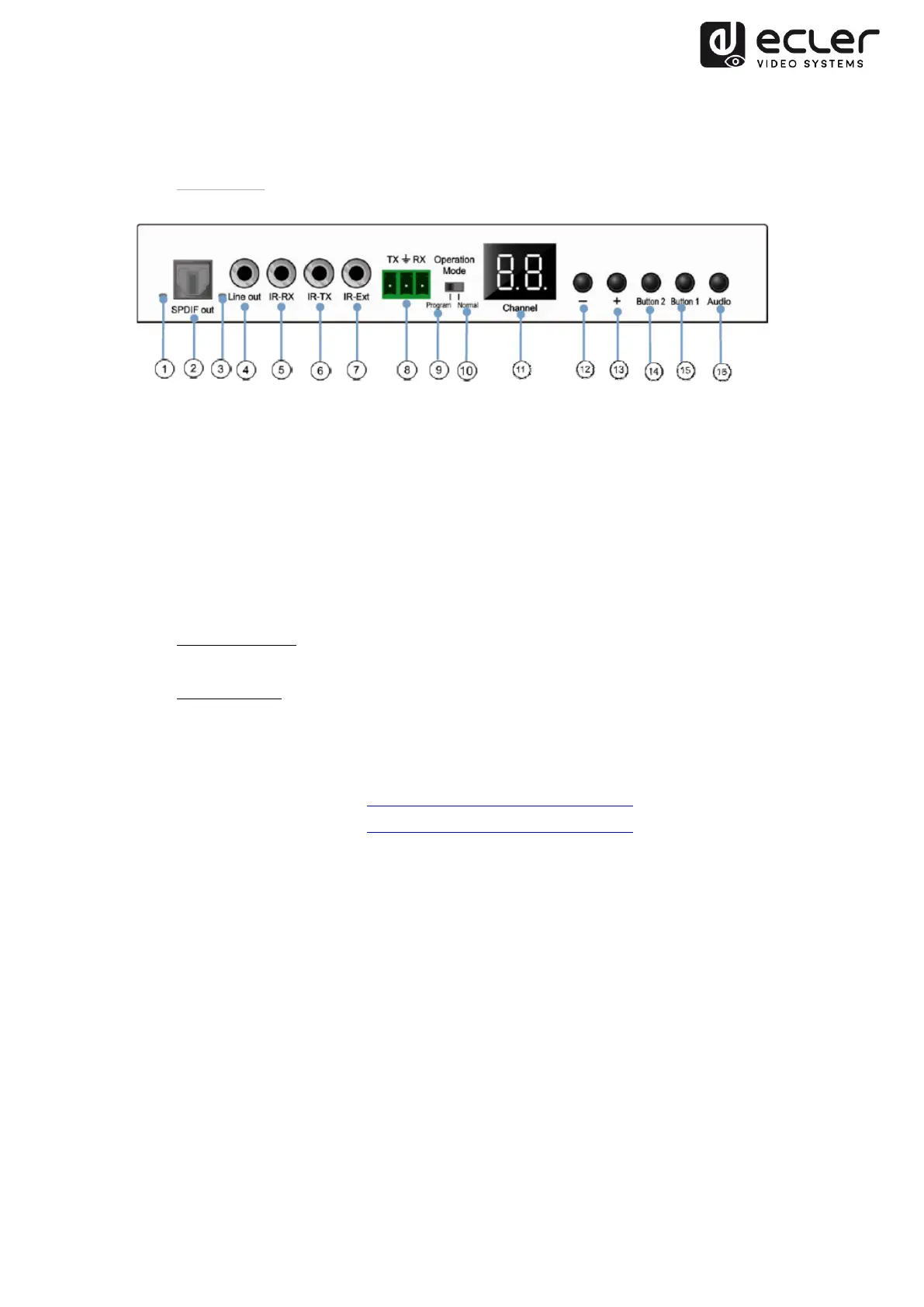

6.2.1 Front panel
1. S/PDIF status indicator
2. Audio Output S/PDIF Connector
3. Analogue audio status indicator
4. Analogue audio line out connector
5. IR-RX connector for IR sensor
6. IR-TX connector for IR emitter
7. IR sensor for remote control
8. RS232 Full-Duplex Port
9. Program Mode: In this mode, the RS232 port is used to control the unit,
deactivating the IR-EXT port
10. Normal Mode: In this mode, the RS232 port will act as a pass-through extension
11. Group ID LED screen
12. Group ID DECREASE button
13. Group ID INCREASE button
14. Function button (see the Description of the function buttons chapter)
15. Function button (see the Description of the function buttons chapter)
16. HDMI, S/PDIF or Analogue Audio selection button (the default audio selection is
HDMI)
