5. PANEL FUNCTIONS
5.1 VEO-SPS44 (Splitter TX)

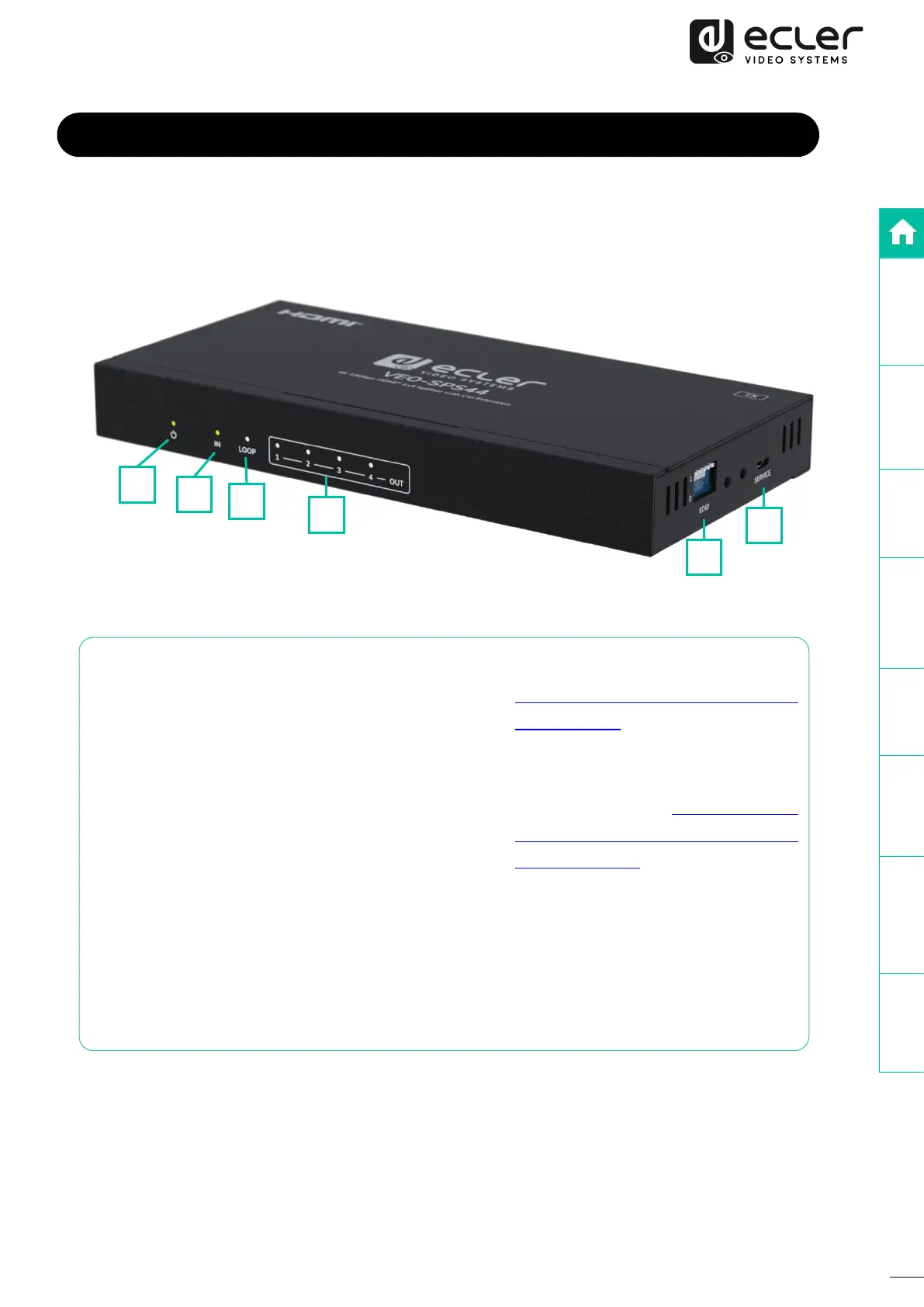

5.1.1 Front & Side Panel
1. Power LED: When the device is
powered on, the green power LED
will be on.
2. IN LED: When the HDMI IN port
connects an active source device, the
green LED will be on.
3. LOOP LED: When the HDMI LOOP
OUT port connects an active display
device, the green LED will be on.
4. OUT LED [1-4]: When the CAT
OUTPUT 1-4 port connects the CAT
IN port of CAT receiver, the
corresponding white OUT LED will be
on.
5. EDID Switch: Used to set EDID mode.
Please refer to EDID Mode section for
further details.
6. SERVICE: Micro-USB used for
firmware upgrade or serial port
command control. Please refer to
ASCII Commands section for further
detail for details.
1
2
3
4
5
6
