5. PACKAGE CONTENTS
• 1 x Interface
• 1 x USB 3.0 Cable
• 2 x 3 Pin Euroblock Connector
• 2 x Surface mount ears
6. PANEL DESCRIPTIONS

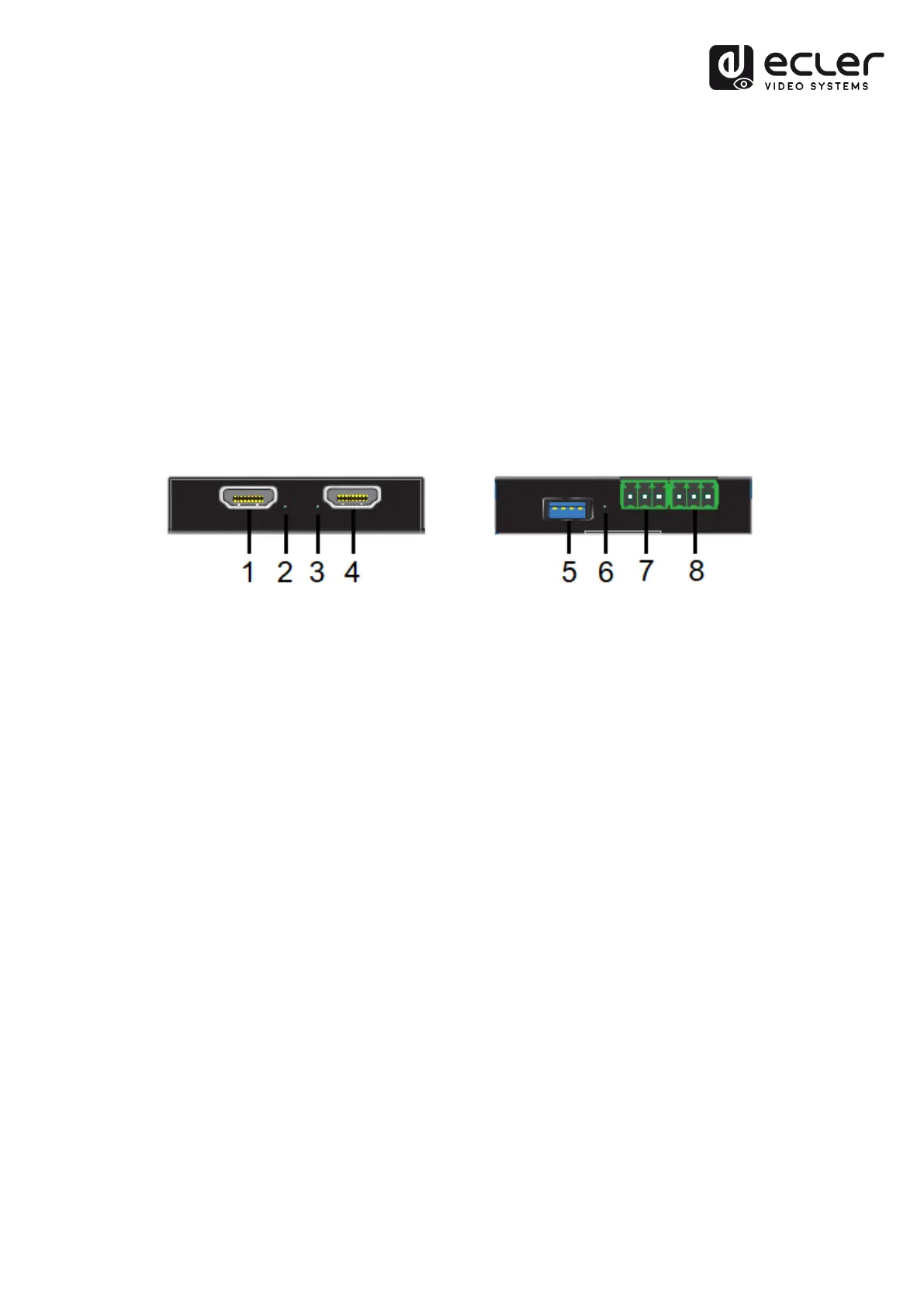

6.1 Interface Frontal Panel and Rear Panel
1. HDMI
OUT: Connect this output to a local display or to another HDMI
distribution device
2. HDMI
OUT LED: This LED will be lit green when the HDMI
output is correctly
connected
3. HDMI
IN LED: This LED will be lit green when the HDMI
input is correctly
connected
4. HDMI
IN: Connect this output to a HDMI
Cam or to another HDMI
source
device
5. USB 3.0: Connect this USB port to a PC or Mac for capturing audio and video over
third party software (OBS Studio, Skype
©
…)
6. USB 3.0 LED: This LED will be lit green when the device is correctly powered
through the USB port
7. LINE OUT: Stereo unbalanced line output that provides the de-embedded audio
signal from the HDMI
input
8. LINE IN: Mono balanced line input that allow mixing an external audio source to
the main audio stream
