8. PANEL FUNCTIONS

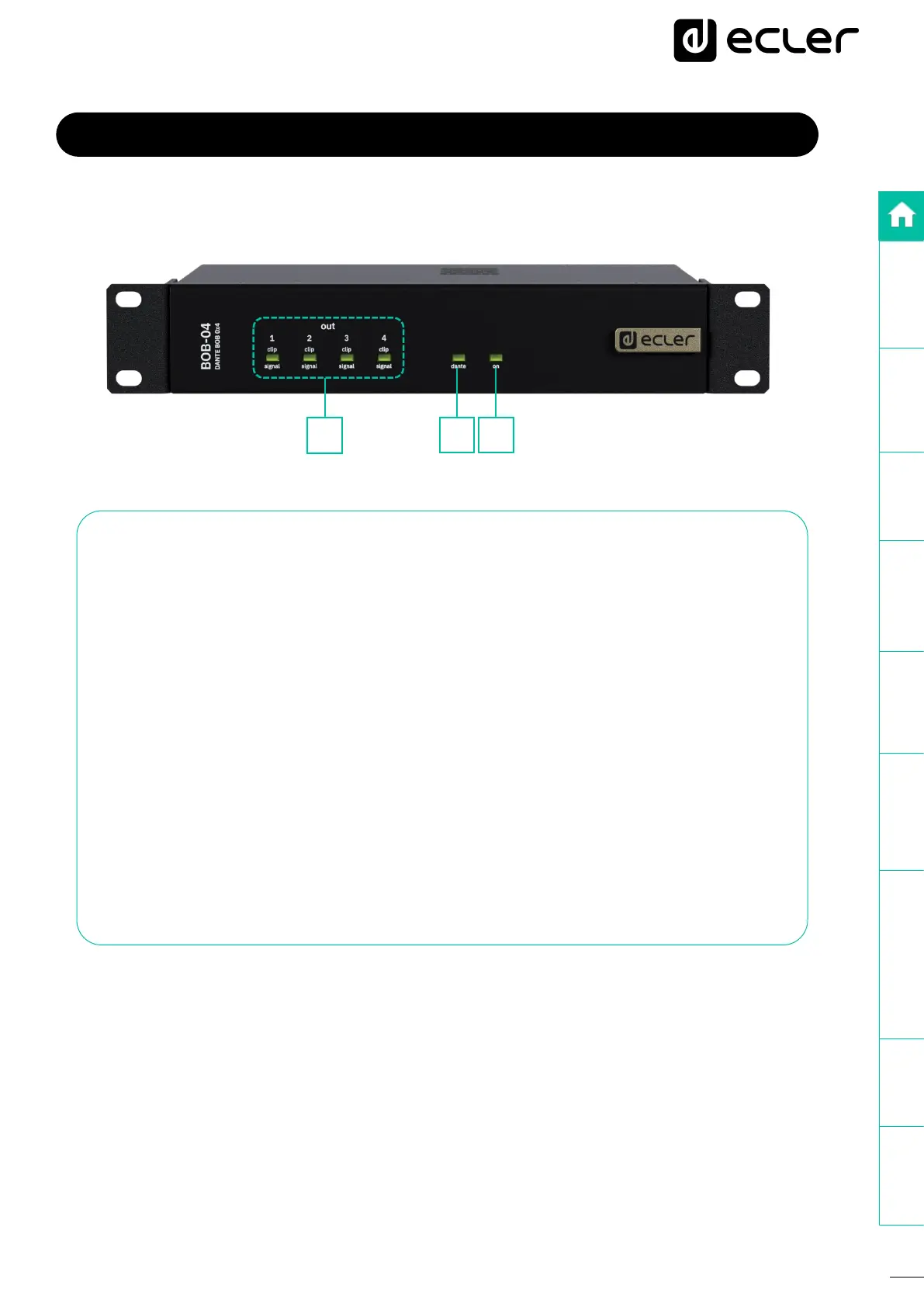

8.1 Front Panel
1. ON, POWER On led indicator. Lights
up when the unit is on.
2. Dante/AES67LED indicator:
• Red fixed LED : during the boot
up process.
• Amber fixed LED: during the
PTP (Precision Time Protocol)
network time synchronization.
• Green fixed LED: the unit has
been set up as a Dante/AES67
Slave.
• Green blinked LED: the unit has
been set up as a Dante/AES67
Master.
3. OUTPUTS Clip/signal indicators x4
• Green LED: SP
• Red LED: Clip
1
2
3
