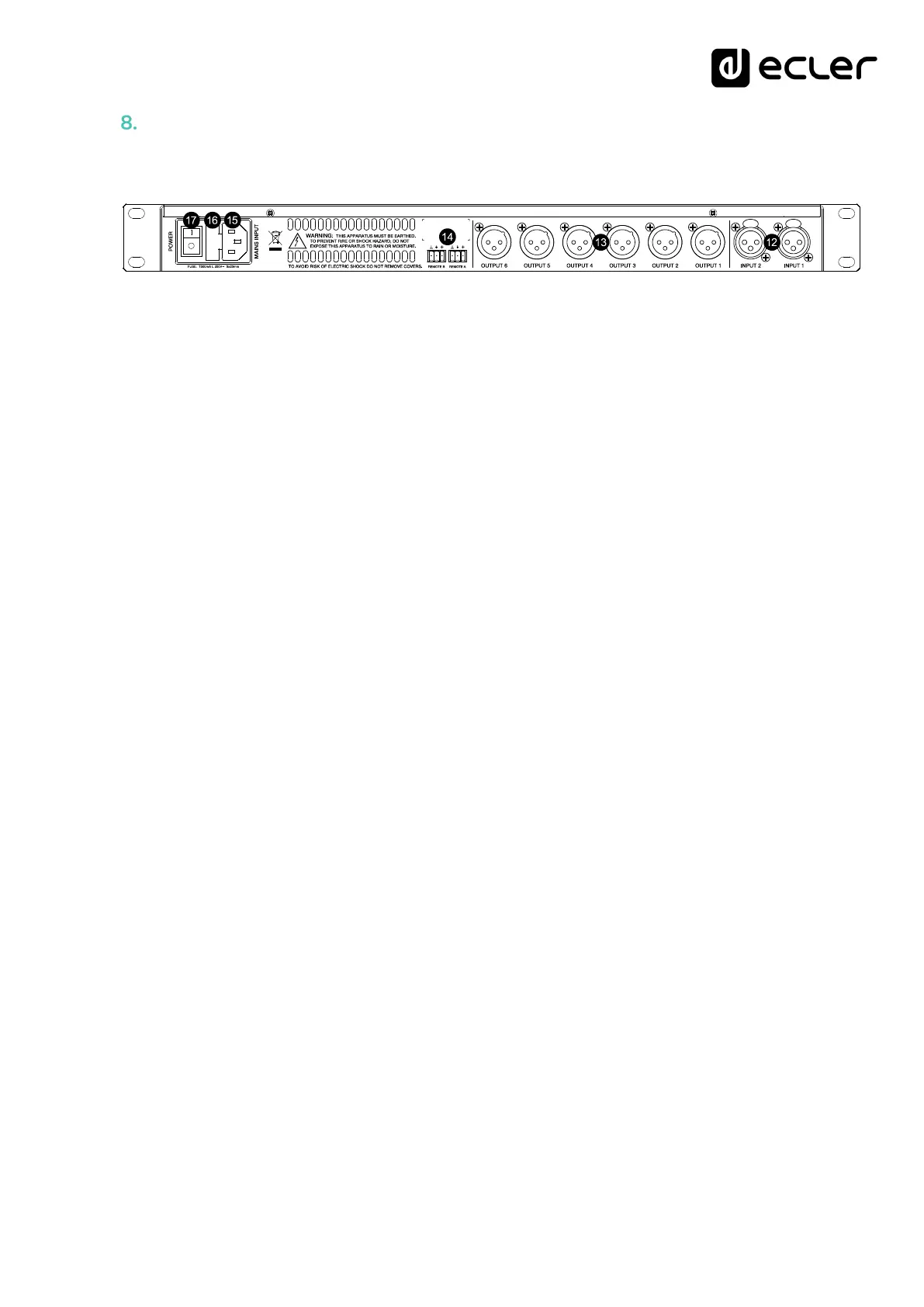

BACK PANEL
The back panel features the following connections:
• Mains, fuse and power switch (15, 16, 17)
Due to the switched mode power supply, the operating voltage range is 100V – 240V
AC, with a frequency between 47Hz and 63Hz. Before powering up the unit, make
sure that the ALMA26 is correctly connected to ground in a facility that complies with
local regulations.
• Input (12) and output (13) connectors
The ALMA26 has two balanced audio inputs (CH1 and CH2) on 3-pin female XLR
connectors (pin 1 to ground, pin 2 to signal + (positive) and pin 3 to signal –
(negative)). The ALMA26's signal output is performed through six balanced outputs
(OUTPUT1-6), on 3-pin male XLR connectors. As for inputs, the connectors are
configured with the pin 1 to ground, pin 2 to signal + (positive) and pin 3 to signal –
(negative).
• REMOTE connectors (14)
The A and B REMOTE connectors allow you to simultaneously control the volume of
one or multiple inputs, or one or multiple outputs through a WPm series wall panel
or similar (0-10VDC). The inputs or outputs controlled through each REMOTE port
are selected using the device setup menu (front keys and LCD display) or from
EclerCOMM Manager software.
