14

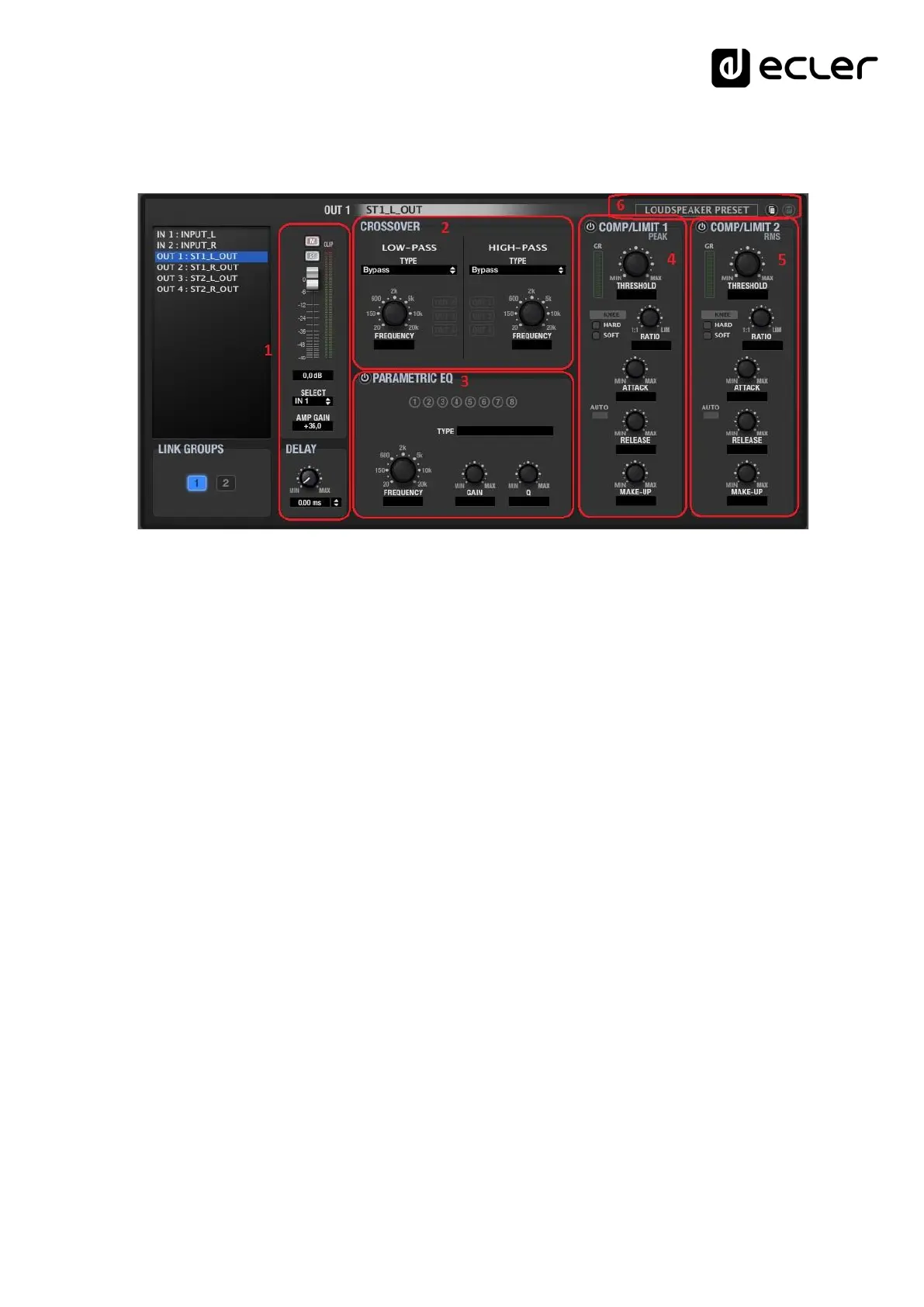

9.5 Output processing
The processing available for each audio output channel is the following:
1 Volume, Mute, polarity inversion and delay (up to 1 second, displayed in units of
time or distance) controls. Also included are 2 level meters ("pre-processing" and
"post-processing") for the output channel.
With SELECT, choose the signal source for each output channel, between NONE,
IN1, IN2, IN1+IN2 (mono mix from a stereo source) or GEN (internal signal
generator).
AMP GAIN allows you to set the gain of the amplifier that will work with the
ALMA24 device. This parameter is critical for the compressor/limiter to process
correctly the signal, in order not to exceed a certain level and/or to protect the
installation speaker systems.
2 CROSSOVER, or low-pass and high-pass filters to define a frequency range to
work on amongst the entire audible spectrum. Available filter types are:
• BYPASS (filter not activated)
• BESSEL 12, 18, 24 or 48 dB/oct
• BUTTERWORTH 6, 12, 18, 24 or 48 dB/oct
• LINKWITZ-RILEY 12, 24 or 48 dB/octave
3 PARAMETRIC EQ, or parametric equalization filters to enhance or attenuate
different frequency ranges of the signal. 8 filters of this type are available for each
output, and each one of them can have the following setting:
• BYPASS (filter not activated)
• Parametric EQ (controls for frequency, Q or filter width and gain or
attenuation of the affected band)
• HIGH SHELF, 6 or 12 dB/octave
• LOW SHELF, 6 or 12 dB/octave
