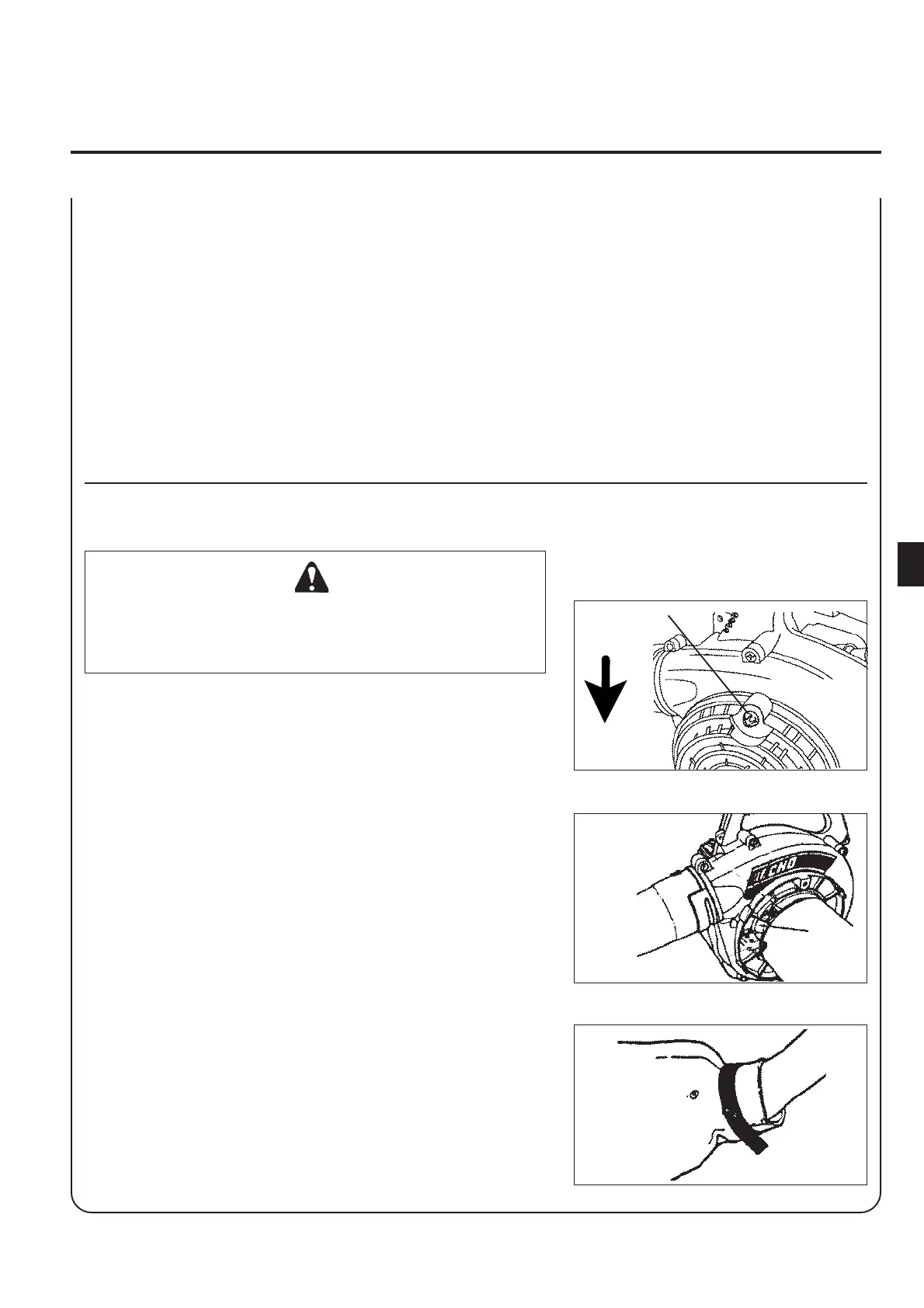

POWER BLOWER
OPERATOR'S MANUAL
Screw
INSTALL VACUUM TUBE (OPTIONAL)
WARNING DANGER
NEVER PERFORM MAINTENANCE OR ASSEMBLY PROCE-
DURES WITH ENGINE RUNNING. WHEN REMOVING GRID,
STOP ENGINE. WHEN APPLYING AS BLOWER, FASTEN
GRID SECURELY.
1. Remove a screw until fan grid is free. Pull fan grid out for access to
tube clamp.
2. Hold the fan grid open, and slide the vacuum tube into the housing
mount until completely seated. Position the tube so that the bevel
faces down in the operating position.
3. Secure vacuum tube with clamp.
4. Align grooves in vacuum elbow with pegs on air outlet and install
vacuum elbow.
5. Turn vacuum elbow clockwise to lock it into place, pointing
backward.
6. Place vacuum bag opening over end of vacuum elbow and secure
with velcro strap.
2. Turn straight pipe clockwise to lock it into place.
3. Tighten screw securely.
4. Remove tube retaining screw from the straight tube. Align grooves
in fan head nozzle with pegs on straight pipe and slide fan head
nozzle onto straight pipe.
5. Turn fan head nozzle clockwise to lock it into place.
6. Tighten screw securely.
Clamp
