INSTALLATION

1. Unscrew the nut that attaches the back screen by turning it counter-clockwise.

2. Place the back screen opposite of the front motor cover with the handle facing upward. Make sure the

guide pins of the motor cover are properly inserted into the screen holes.

3. Screw the nut for attaching the back screen  rmly to the motor by turning it clockwise.

4. Remove the plastic protector from the shaft.

5. Place the propeller on the motor shaft by carefully sliding it onto the guide pin of the motor shaft.

6. Screw the nut for attaching the propeller to the motor shaft by rotating it counter-clockwise and

tighten  rmly.

7. Attach the front screen to the back screen. Insert the screws in the holes of the ring and screw nuts on to

these. Do not tighten the nuts completely at this time.

8. Move the screen pins so they fall into place.

9. Finally, tighten the small screws  rmly.

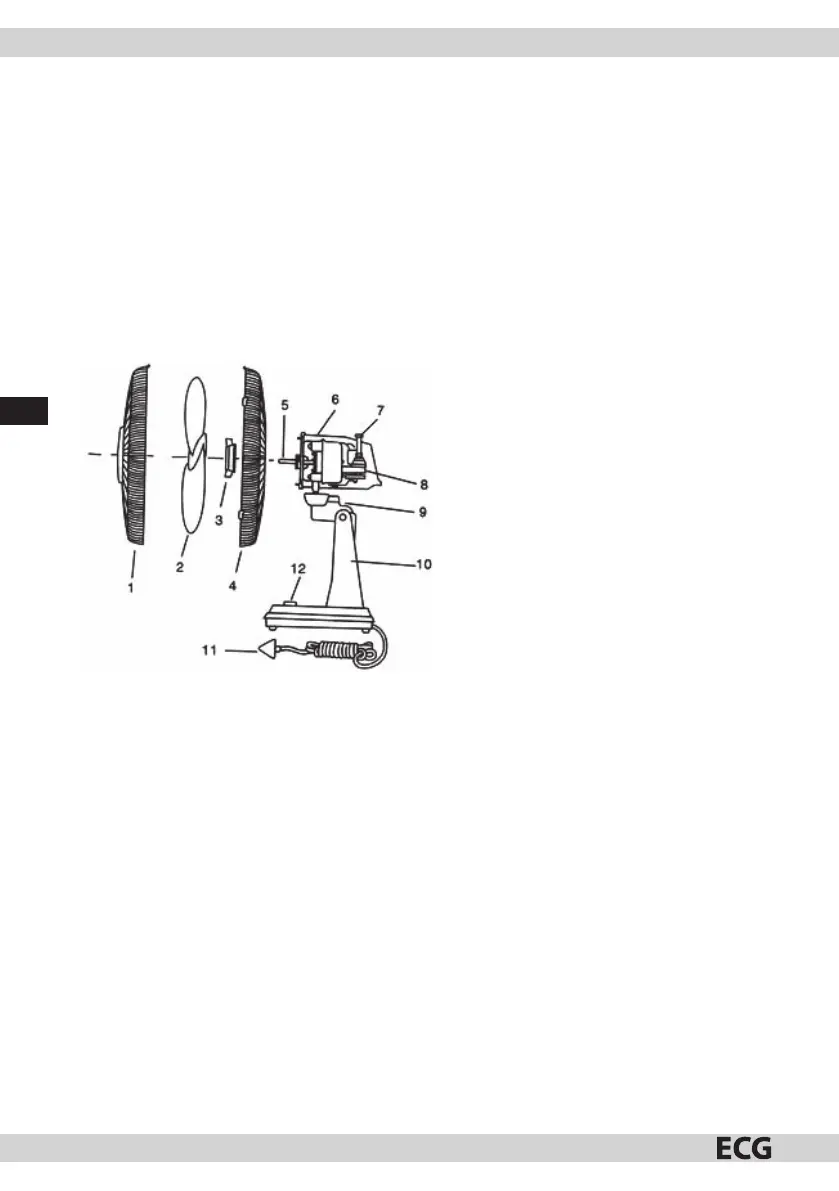

1. Front guard

2. Fan blade

3. Guard mounting nut

4. Rear guard

5. Motor shaft

6. Motor housing

7. Oscilation knob

8. Motor

9. Neck piece assembly

10. Stand

11. Power cord

12. Speed control switch (0, 1, 2)

Note: You may register radio interference while switching fan speeds, this e ect is normal for this kind of

product.

HEAT PROTECTION

Heat protection is activated if an actuating unit is overloaded. The fan switches o automatically. In this case,

refer to a professional service centre.

USE

The fan has 2 speeds, its rotating head ensures smooth rotation. It is quiet, with a low energy consumption,

reliable and safe and at the same time, ensures e ective air circulation.

0 - Fan is o .

1 - Fan is running at low speed.

2 - Fan is running at high speed.

• The fan can rotate during operation.

• For the fan head to rotate, push the automatic rotation control down.

• To stop the rotation of the fan head, pull the automatic rotation control up.

• The fan head can be set up or down. Loosen the vertical setting nut, adjust the desired angle of the fan

and tighten the nut again.
