Fully integrated model

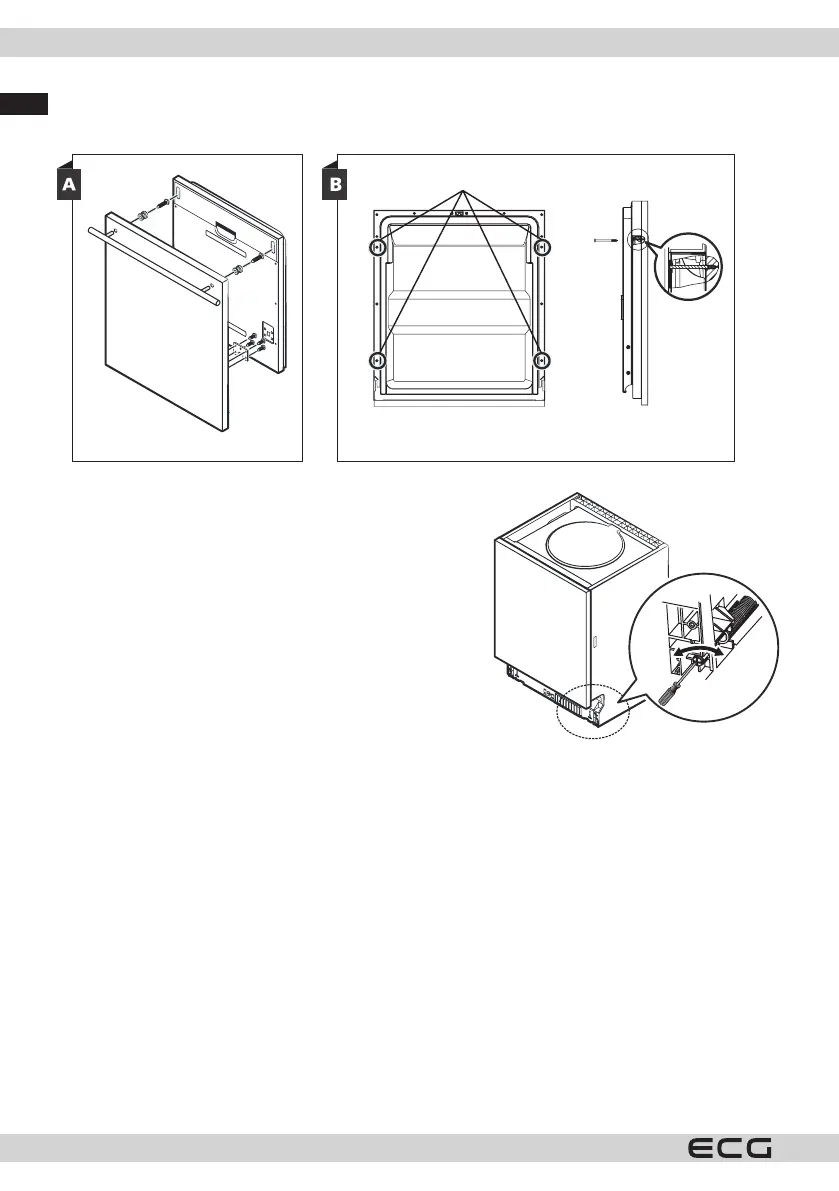

Install the hook on the decorative panel and insert it into the hole in the outer door of the dishwasher (see

Figure A). Once the panel is seated, secure it to the outer door with the screws and nuts (see Figure B).

1. Pull out the four short screws

2. Screw in the four long screws.

Door spring tension adjustment

• The door springs are factory set to the correct tension for

the door itself. If a decorative panel is installed, the spring

tension must be adjusted. Turn the adjusting screw to move

the tensioner so that the wire rope is tensioned or loosened.

• The spring tension is correct if the door remains horizontal

when fully open and closes when lifted slightly with a nger.

Installation procedure

1. Stick the protective condensation tape to the underside of

the cabinet worktop. Make sure that the tape ts exactly to

the edge of the worktop.

2. Connect the supply hose to the cold water.

3. Connect the drain hose.

4. Plug in the power cord.

5. Slide the dishwasher into place.

6. Level the dishwasher. The rear foot can be adjusted from the front using the cross screw located in the

middle of the bottom of the dishwasher. Use a at-blade screwdriver to adjust the front feet - turn them

until the dishwasher is level.

7. Attach the front decorative panel to the outer door of the dishwasher.

8. Adjust the tension of the door springs - turn the screws clockwise to tension both the left and right springs.

Failure to make this adjustment may damage the dishwasher.

9. A dishwasher must be provided on site. There are two possible ways:

A. A normal worktop: Insert the mounting hook into the groove on the side and x it to the worktop

with the screws.

B. Marble or granite worktop: Fasten the sides of the dishwasher with screws.
