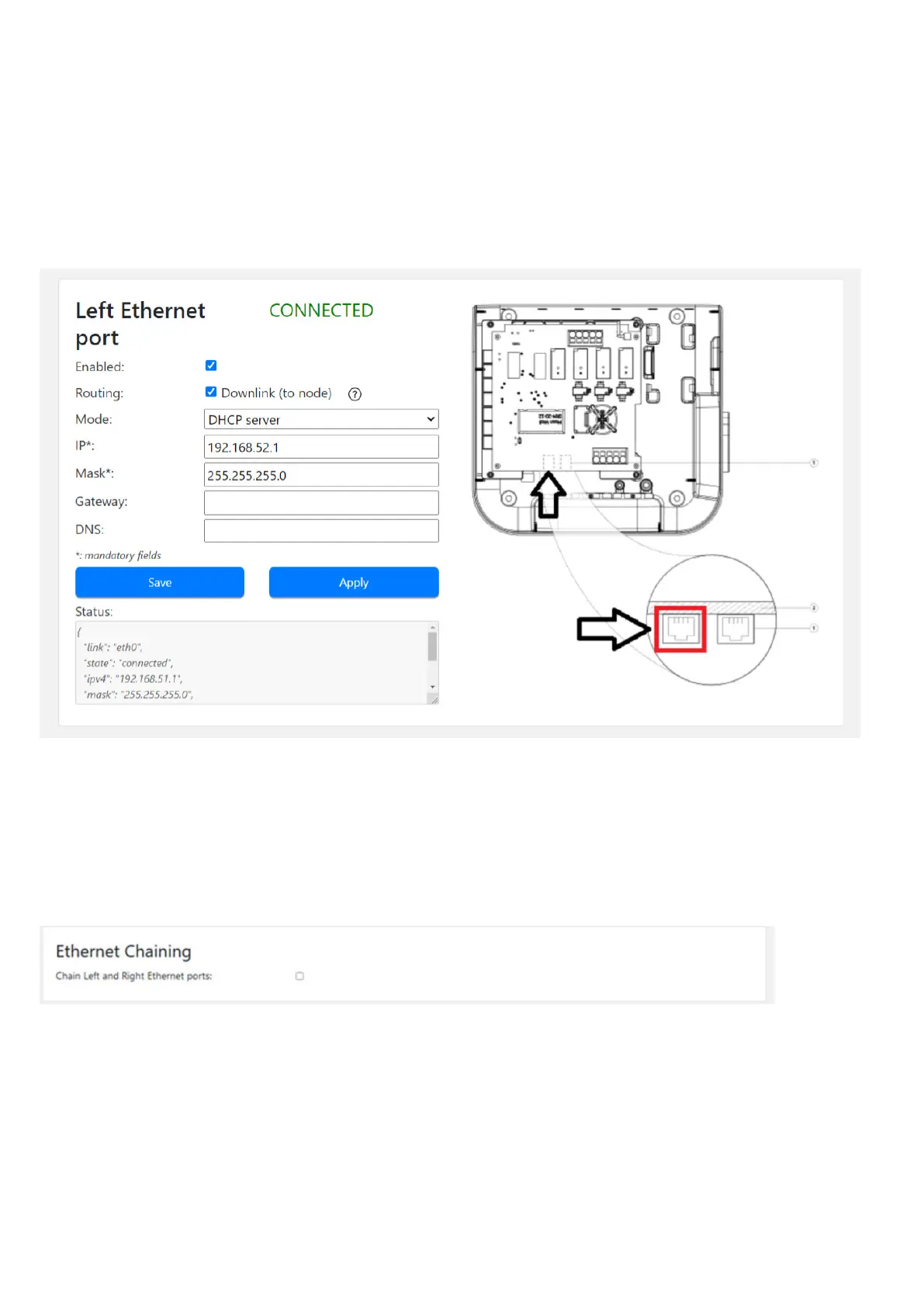

Figure 61. Ethernet (ETH0) connection settings for the Master EV Charger
Figure 62. Ethernet ports chaining
Steps to configure Ethernet (ETH0) connection settings:
Step 1. Go to the “Left Ethernet port” section (Figure 61)
Step 2. Make sure the “Enabled” checkbox is checked.
Step 3. In the “Routing” field, select “Downlink (to node)”.
Step 4. Set “Mode” to “DHCP server”.
Step 5. Enter the local network connection parameters.
Step 6. Click “Save” and “Apply.”
8.4.3.2 Network connection settings: Node
EV chargers configured as Nodes are daisy-chained to the Master and each other, forming an Ethernet network.
The two Ethernet ports on the EV charger are chained together and act as one entity. To enable Ethernet chaining,
proceed according to the following steps:
Step 1. On the configuration page, go to the “Ethernet chaining” section and check the “Chain Left and
Right Ethernet ports” checkbox (Figure 62).
84
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
