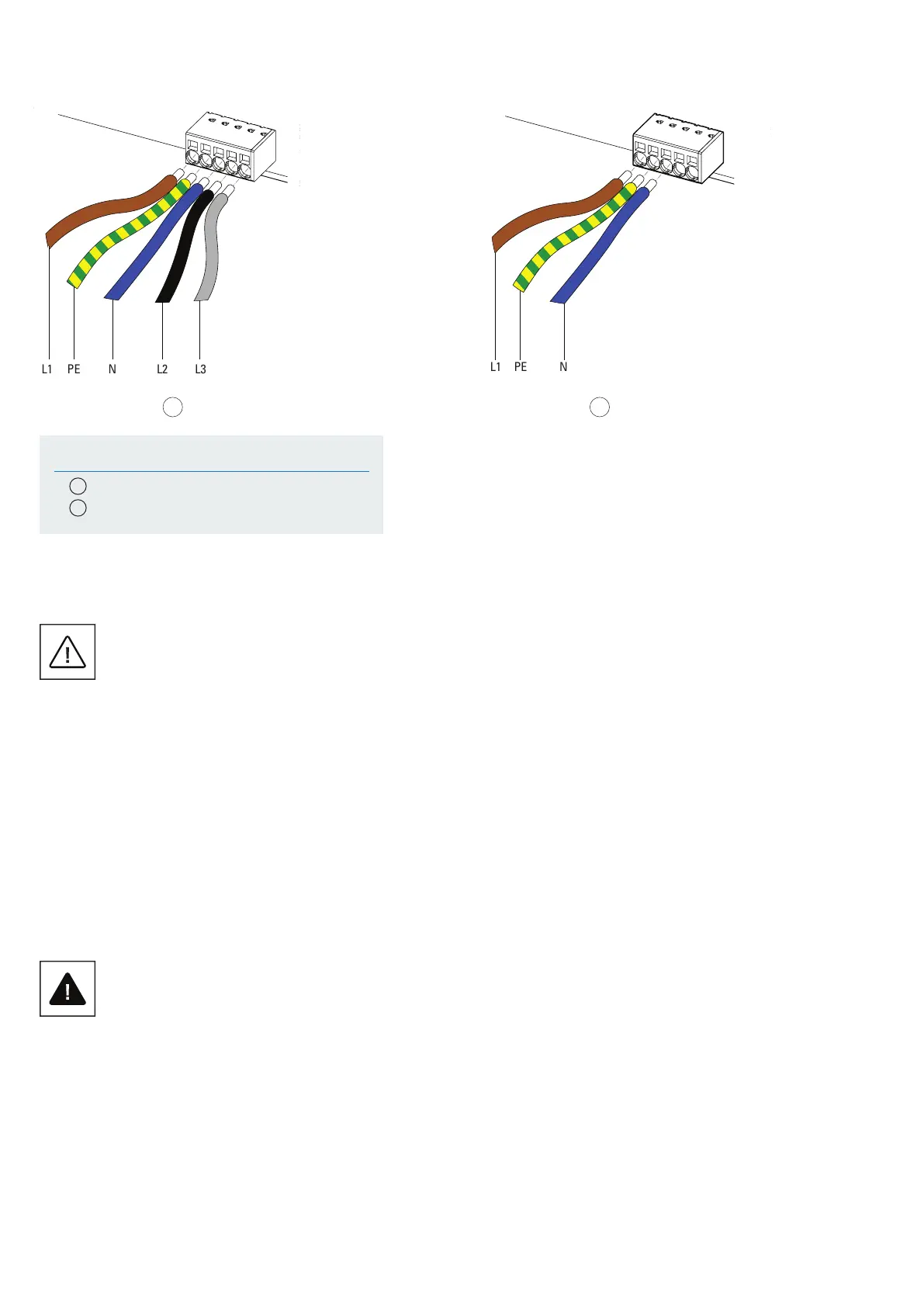

Figure 14. How to wire AC distribution grid wires to the power supply terminal of the Green Motion Building EV
charger
6.4 Charging current limitation
By default, the charging current is limited to 32 A for the Green Motion Building 22 kW EV charger.
In case the maximum capacity of the electrical installation is lower than 32 A, the maximum charging current for the
Green Motion Building EV charger can be reduced through a DIP switch located on the backside of the Green Motion
Building front cover.
In the event of damage caused by improper current adjustment, the product guarantee is void and no returns
will be accepted. Eaton declines any responsibility for improper current adjustment and cannot be liable for any
inappropriate operation.
Tag Description
A
Three-phase terminals L1, L2, L3, N and PE
B
Single-phase terminals L1, N and PE
L1
PE
N
L3
L2
L1
PE
N
A B
Please note: the switch positions in Table 10 are given for an orientation where the label DP1 is located on
the left side of the switch.
Step 5. Close the housing of the Green Motion Building EV charger.
Step 1. Open the housing of the Green Motion Building EV charger. Refer to subsection 5.2 of this manual for
detailed instructions.
Step 2. Locate the DIP switch on the LED-panel on the backside of the Green Motion Building EV charger front cover.
See Figure 15.
Step 3. Determine the maximum capacity of the electrical installation in which the Green Motion Building EV charger
is installed.
Step 4. Use Table 10 to select a maximum charging current for the EV charger LOWER than the maximum capacity of
the electrical installation and configure the DIP switch accordingly.
To limit the maximum charging current for the Green Motion Building EV charger, follow these steps:
32
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
