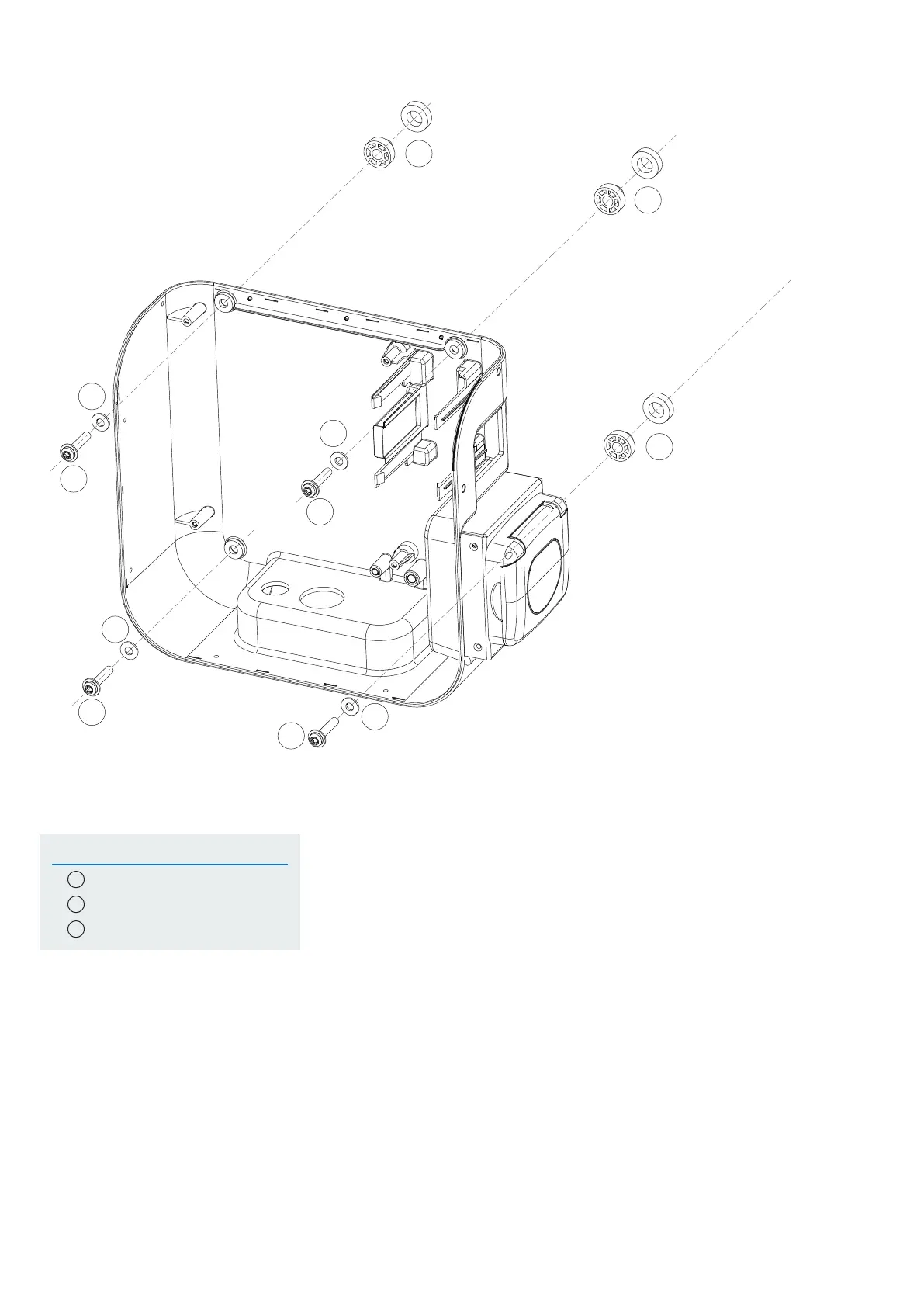

Figure . How to mount the Green Motion Building EV charger (T2S version) on a wall
3
3
3
2
2
1
1
1
1
2
2
Figure . How to mount the Green Motion Building EV Charger (T2S version) with the cable holder on a wall
3
3
3
4
2
2
1
1
1
1
2
Electronic boards should not be removed for mounting the unit on the wall. The image is for illustration
purposes only.
Tag Description
1
Ø6 mm screws
2
Gaskets
3
Spacers
4
Cable holder
Tag Description
1
Ø6 mm screws
2
Gaskets
3
Spacers
Figure 10. How to mount the Green Motion Building EV charger (T2S version) on a wall
26
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
