3.4 Types of connectors
The Green Motion Building EV charger can be provided with two types of connectors:
1. Type 2 connector with cable (Mode 3), 400 V, 32 A, for either single or three phases
2. Type 2 connector with female socket (Mode 3).
The maximum power output a Type 2 connector can deliver, independently from the EV charger rated power, is 22 kW.
Figure 3. Illustration of a Type 2 connector
3.3 Bottom view

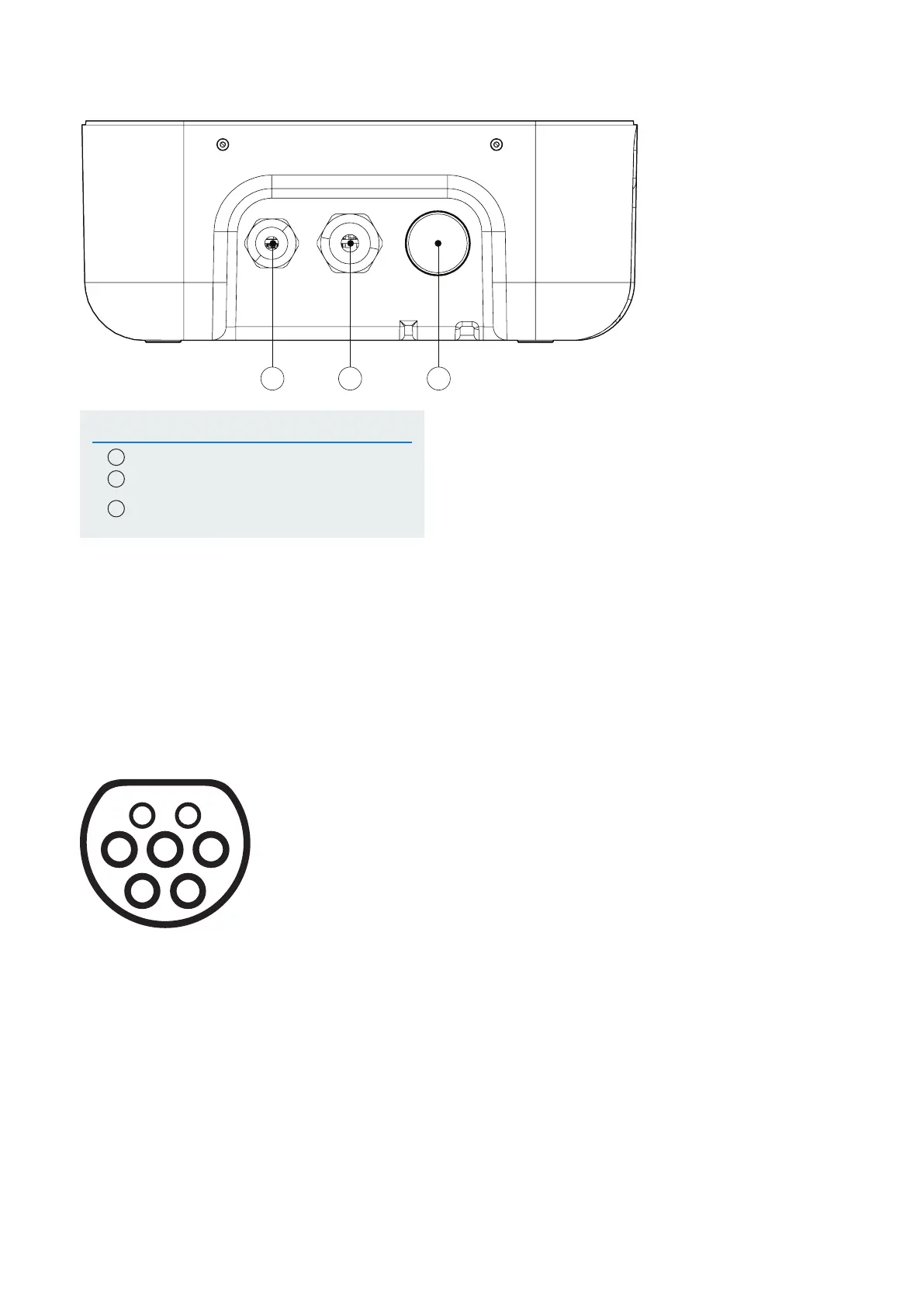

Figure 4. Bottom view of the Green Motion Building EV charger
Tag Description
1
Screw plug M20
2
Cable gland with locking nut M32 (power input)
3
Cable gland with locking nut M32 (cable output for the
SKU version with the cable)
1 2 3
15GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
