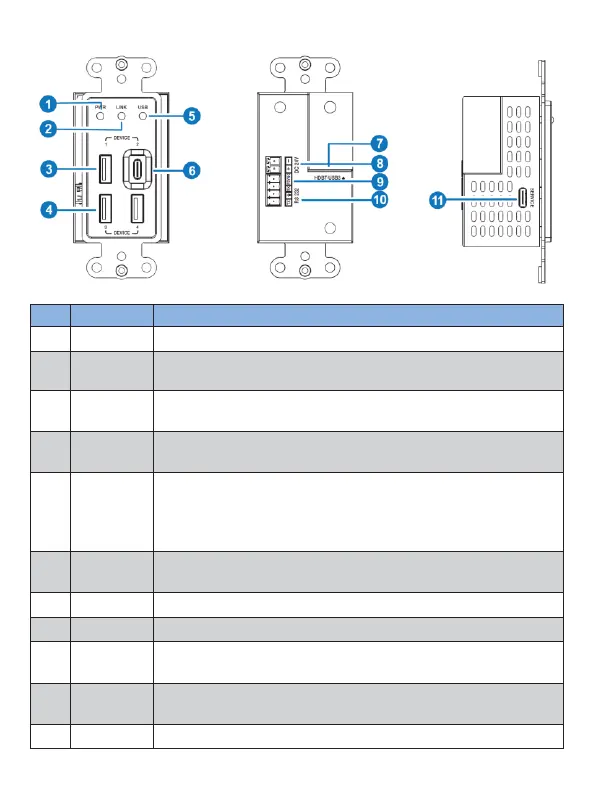

5.2 Receiver Panel
No.
Name
Function Description
1
PWR LED
The green LED will be on when the unit is powered on.
2
LINK LED
The green LED will be on when the Transmitter and Receiver
are connected successfully.
3
DEVICE 1
USB-A device port, connected to USB devices such as U disk
or hard disk. Output power is up to 5V/1A.
4
DEVICE 3/4
USB-A device ports, connected to USB devices such as U disk
or hard disk. Output power is up to 5V/1.5A.
5
USB LED
USB signal pass-through indicator.
▪ On: USB 3.0 signal is detected.
▪ Blinking: USB 2.0 signal is detected.
▪ Off: USB signal is not detected.
6
DEVICE 2
USB-C device port, connected to USB devices such as U disk
or hard disk. Output power is up to 5V/1A.
7
HDBT-USB3
Connects to the HDBT-USB3 port on Transmitter with CAT6a cable.
8
DC 24V
DC 24V/3.75A power input port.
9
FSYNC
FSYNC port, the level pass through from Transmitter to Receiver,
to synchronize the external devices. Default level range is 0~5V.
10
RS-232
3-pin phoenix connector, connected to a PC or control system for
RS-232 command pass-through.
11
SERVICE
USB-C port, used for firmware update.
