Je bekijkt pagina 6 van 12
4 /9
1 2
3
4
5
6
7
9
10
11
12
8
No.
Name
Function Description
8
HDBT-USB3
Connects to the HDBT-USB3 port on Receiver with CAT6a cable.
9
LINK LED
Connection signal indicator.
▪ On: Transmitter and Receiver are connected and linked.
▪ Off: Transmitter and Receiver are not connected.
10
HOST 1
Uplink USB-C port, connected to a PC or host.
It can be used to update HUB firmware.
11
HOST 1 LED
The LED will be on when USB signal is detected on HOST 1 port.
12
HOST 2
Uplink USB-B port, connected to a PC or host.
It can be used to update HUB firmware.
13
HOST 2 LED
The LED will be on when USB signal is detected on HOST 2 port.
14
RS-232
3pin phoenix connector, connected to a PC or control system
for RS-232 command pass-through.
15
FSYNC
FSYNC port, the level pass through from Transmitter to Receiver,
to synchronize the external devices. Default level range is 0~5V.
16
SERVICE
Firmware update port, supporting USB 2.0.
17
DC 24V
DC 24V/3.75A power input port.

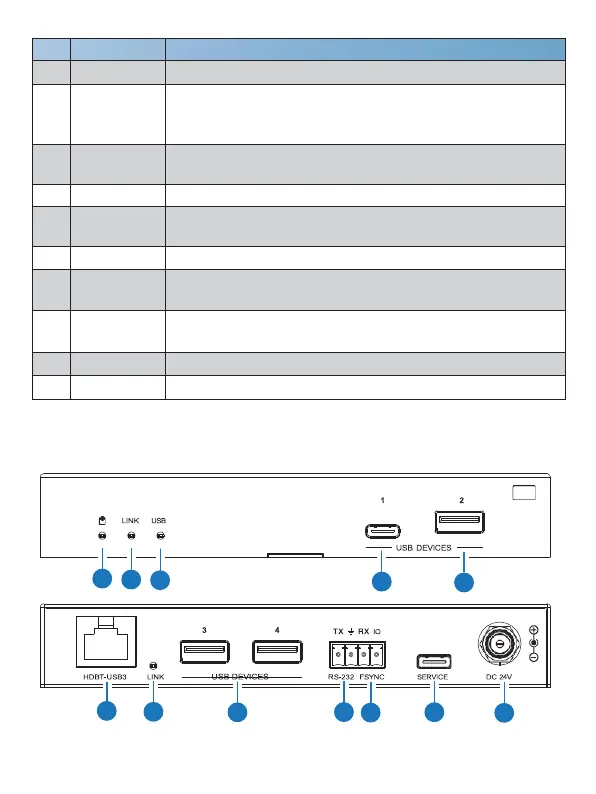

5.2 Receiver Panel
RX
