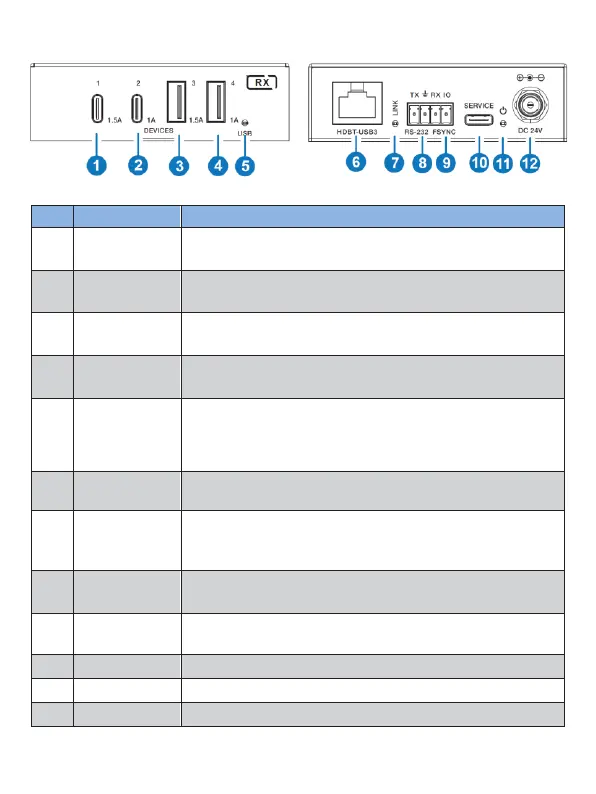

5.2 Receiver Panel
No.
Name
Function Description
1
USB DEVICES 1
Downlink USB-C port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1.5A.
2
USB DEVICES 2
Downlink USB-C port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1A.
3
USB DEVICES 3
Downlink USB-A port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1.5A.
4
USB DEVICES 4
Downlink USB-A port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1A.
5
USB LED
USB signal indicator.
▪ On: USB 3.0 signal is detected.
▪ Blinking: USB 2.0 signal is detected.
▪ Off: USB signal is not detected.
6
HDBT-USB3
Connects to the HDBT-USB3 port on Transmitter with CAT6a
cable. It can also be used for 24V PoC power supply.
7
LINK LED
Connection signal indicator.
▪ On: Transmitter and Receiver are connected and linked.
▪ Off: Transmitter and Receiver are not connected.
8
RS-232
3pin phoenix connector, connected to a PC or control system
for RS-232 command pass-through.
9
FSYNC
FSYNC port, the level pass through from TX to RX, to synchro-
nize the external devices. Default level range is 0~5V.
10
SERVICE
USB-C port for firmware update, supporting USB 2.0.
11
Power LED
The LED will be on when the receiver is powered on.
12
DC 24V
DC 24V/3.75A power input port.
