5. Operation Controls and Functions

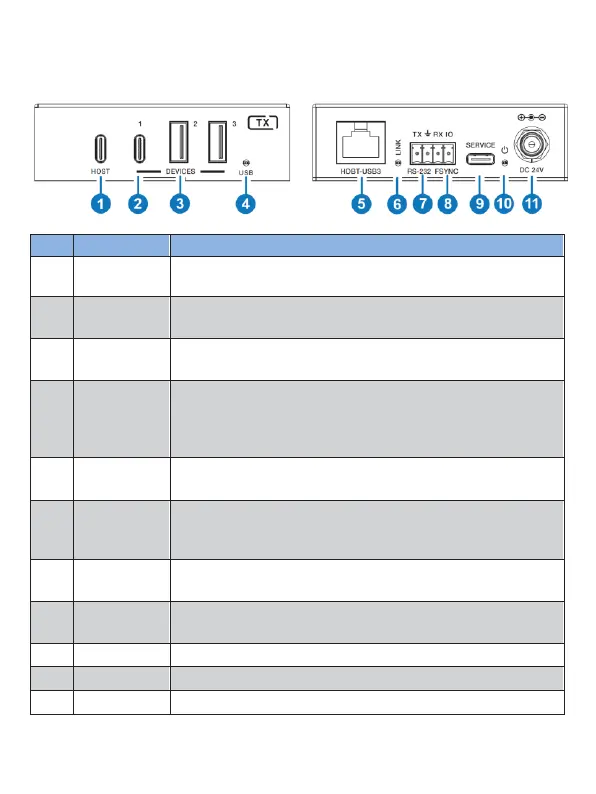

5.1 Transmitter Panel
No.
Name
Function Description
1
HOST
Uplink USB-C port, connected to PC or host.
It can be used for HUB firmware update.
2
USB DEVICES
(1)
Downlink USB-C port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1A.
3
USB DEVICES
(2~3)
Downlink USB-A port, connected to USB devices such as
U disk or hard disk. Its output power is up to 5V/1A.
4
USB LED
USB signal indicator.
▪ On: USB 3.0 signal is detected.
▪ Blinking: USB 2.0 signal is detected.
▪ Off: USB signal is not detected.
5
HDBT-USB3
Connects to the HDBT-USB3 port on Receiver with CAT6a cable.
It can also be used for 24V PoC power supply.
6
LINK LED
Connection signal indicator.
▪ On: Transmitter and Receiver are connected and linked.
▪ Off: Transmitter and Receiver are not connected.
7
RS-232
3pin phoenix connector, connected to a PC or control system
for RS-232 command pass-through.
8
FSYNC
FSYNC port, the level pass through from Transmitter to Receiver,
to synchronize the external devices. Default level range is 0~5V.
9
SERVICE
USB-C port for firmware update, supporting USB 2.0.
10
Power LED
The LED will be on when the transmitter is powered on.
11
DC 24V
DC 24V/3.75A power input port.
