-4-
1/5

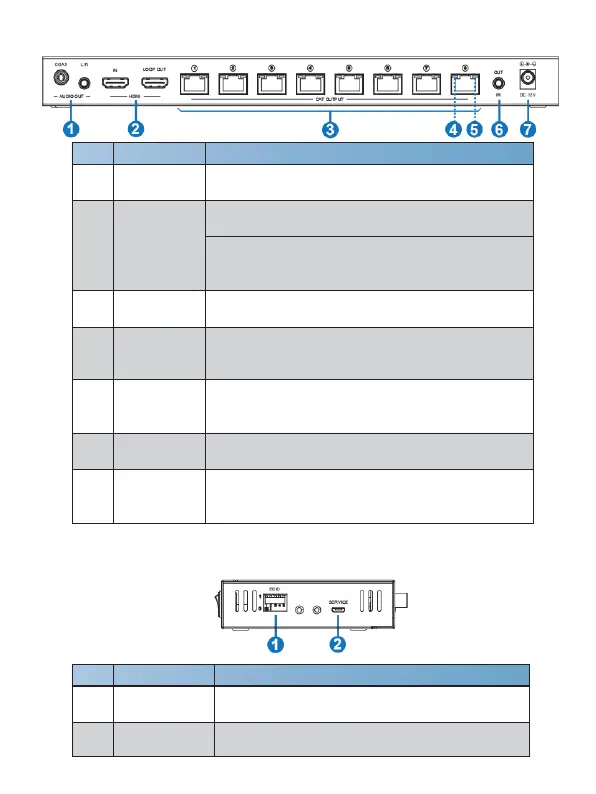

Rear Panel
No.
Name
Function Description
1
AUDIO OUT
(COAX, L/R)
Coaxial/analog audio output port, connect to amplifier
or speaker.
2
HDMI port
IN: HDMI input port, connect to HDMI source device
such as DVD or set-top box with an HDMI cable.
LOOP OUT: HDMI loop output port, connect to the
HDMI display device such as TV or Monitor with
an HDMI cable.
3
CAT OUTPUT
port (1~8)
Connect to the CAT IN port of the CAT receiver with
a CAT cable.
4
Link Signal
Indicator lamp
(Green)
▪ Illuminate: Transmitter and receiver are connected.
▪ Dark: Transmitter and receiver are not connected.
5
Data Signal
Indicator lamp
(Orange)
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
6
IR OUT
Connect the IR Blaster cable to transmit IR signal
from the CAT receiver.
7
DC 12V
Plug the DC 12V power supply into the unit and
connect the adaptor to an AC outlet. (Note: The
transmitter can power the receiver via a CAT cable.)
Side Panel
No.
Name
Function Description
1
EDID DIAL
switch
Used to set EDID mode. Please refer to Section
“6. EDID Mode” for details.
2
SERVICE port
Used for firmware update or serial port command
control.
