-3-
1/5
Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 210mm (W) × 100mm (D) × 25mm (H)
Receiver: 88mm (W) × 61mm (D) × 18mm (H)
Weight
Transmitter: 617g Receiver:155g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
14W
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

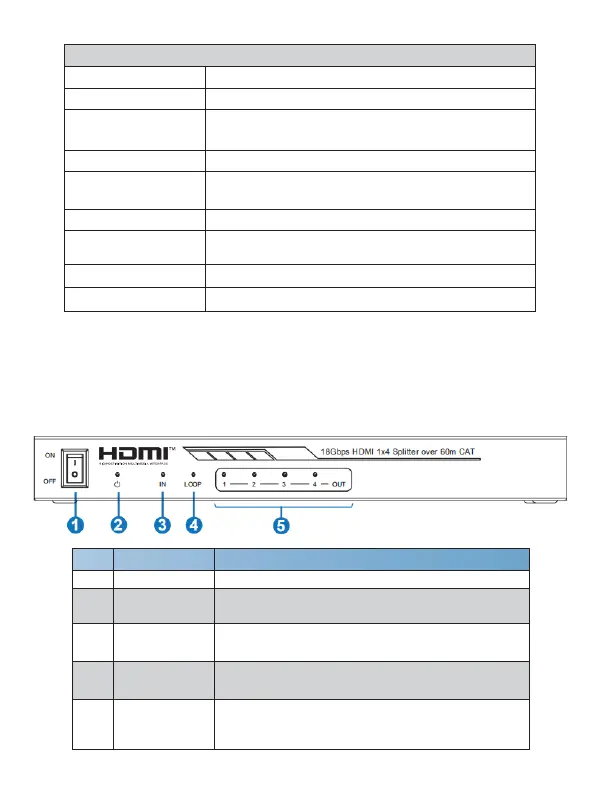

5. Operation Controls and Functions
5.1 Transmitter Panel
Front Panel
No.
Name
Function Description
1
POWER switch
Press this switch to power on/off the device.
2
POWER LED
When the device is powered on, the red power
LED will be on.
3
IN LED
When the HDMI IN port connects an active source
device, the green LED will be on.
4
LOOP LED
When the HDMI LOOP OUT port connects an
active display device, the green LED will be on.
5
OUT LED
(1~4)
When the CAT OUTPUT port connects the CAT IN
port of CAT receiver, the corresponding green
OUT LED will be on.
