5 / 11
No.
Name
Function Description
1
EDID DIAL
switch
Used to set EDID mode. Please refer to “6. EDID Mode” for details.
2
SERVICE
port
Used for firmware update or serial port command control.
Please refer to “7. ASCII Commands” for details.

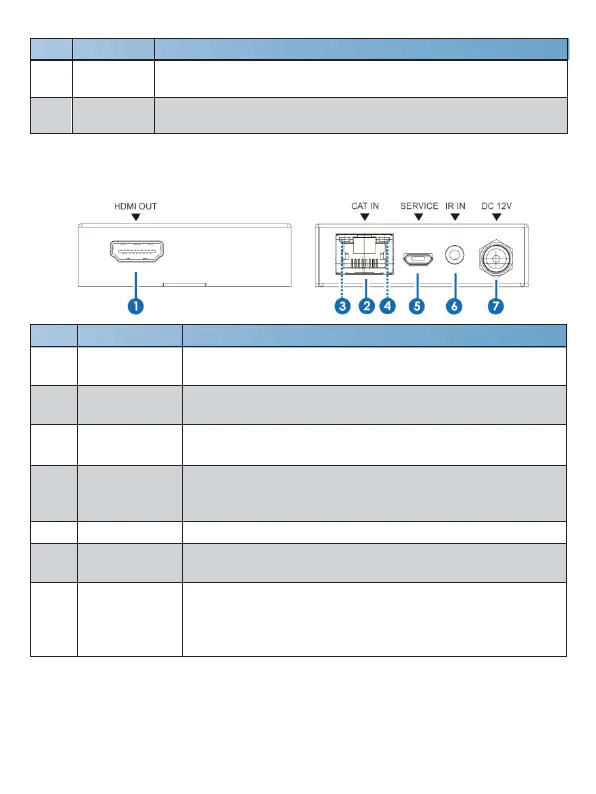

5.2 CAT Receiver
No.
Name
Function Description
1
HDMI OUT
HDMI output port, connect to HDMI display device such as
TV or Projector with an HDMI cable.
2
CAT IN
Connect to the CAT OUTPUT port on the transmitter with a
CAT cable.
3
Power Indicator
(Green)
When the receiver is powered on, the power indicator will
be on.
4
Data Signal
Indicator
(Orange)
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
5
SERVICE port
Used for firmware update.
6
IR IN
Connect the IR Receiver cable. The IR signal will be sent to
the IR OUT port of the transmitter.
7
DC 12V
Plug DC 12V/1A power supply into the unit and connect the
adapter to an AC outlet.
(Note: The CAT receiver also can be powered by the
transmitter via a CAT cable. )
