4 / 38

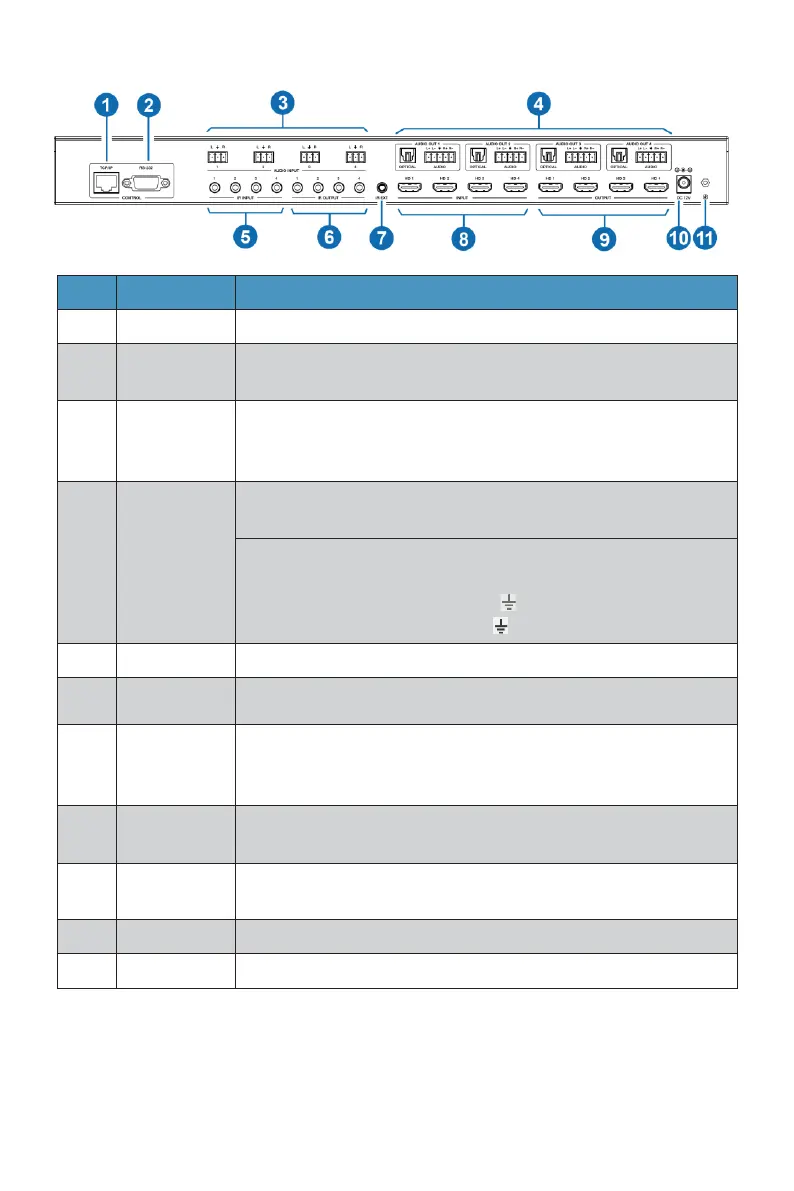

5.2 Rear Panel
NO.
Name
Function Description
1
TCP/IP
TCP/IP control port, connected to PC or router with a CAT cable.
2
RS-232 port
Connect to a PC or control system by D-Sub 9-pin cable to transmit
RS-232 command.
3
AUDIO INPUT
(1~4)
L/R analog audio input port, connected to an analog audio input source
such as DVD or Blu-ray Player. It follows HDMI input (1~4), and the
embedded audio can not be extracted to audio out channel to output.
4
AUDIO OUT
(1~4)
OPTICAL: Optical audio output port, connected to an audio output
device such as audio amplifier.
L/R AUDIO: Analog audio output port, supporting balanced audio output
(with a maximum support of 2Vrms) and unbalanced audio output.
Balanced connection method: L+, L -, , R+, R-
Unbalanced connection method: L+, , R+
5
IR INPUT (1~4)
Connect with IR receiver cable.
6
IR OUTPUT
(1~4)
Connect with IR blaster cable.
7
IR EXT
If the IR receiver window of the unit is blocked or the unit is installed
in a closed area out of infrared line of sight, the IR receiver cable can
be connected to the “IR EXT” port to receive the IR remote signal.
8
HDMI INPUT
ports (1~4)
HDMI input ports, connected to HDMI source devices such as
computer, DVD or set-top box with an HDMI cable.
9
HDMI OUTPUT
ports (1~4)
HDMI output ports, connected to HDMI display devices such as TV or
monitor with an HDMI cable.
10
DC 12V
Connect to 12V/2.5A power adapter.
11
GND
Connect the housing to the ground.
Note:
1.
You can restore the factory settings via the front panel, Web GUI or RS-232 command.
2. Power cut memory function is available except for standby status and panel lock.
3.
The RS-232 and Web will be available in a few minutes when the device is powered on.
