3 / 38
5. Operation Controls and Functions

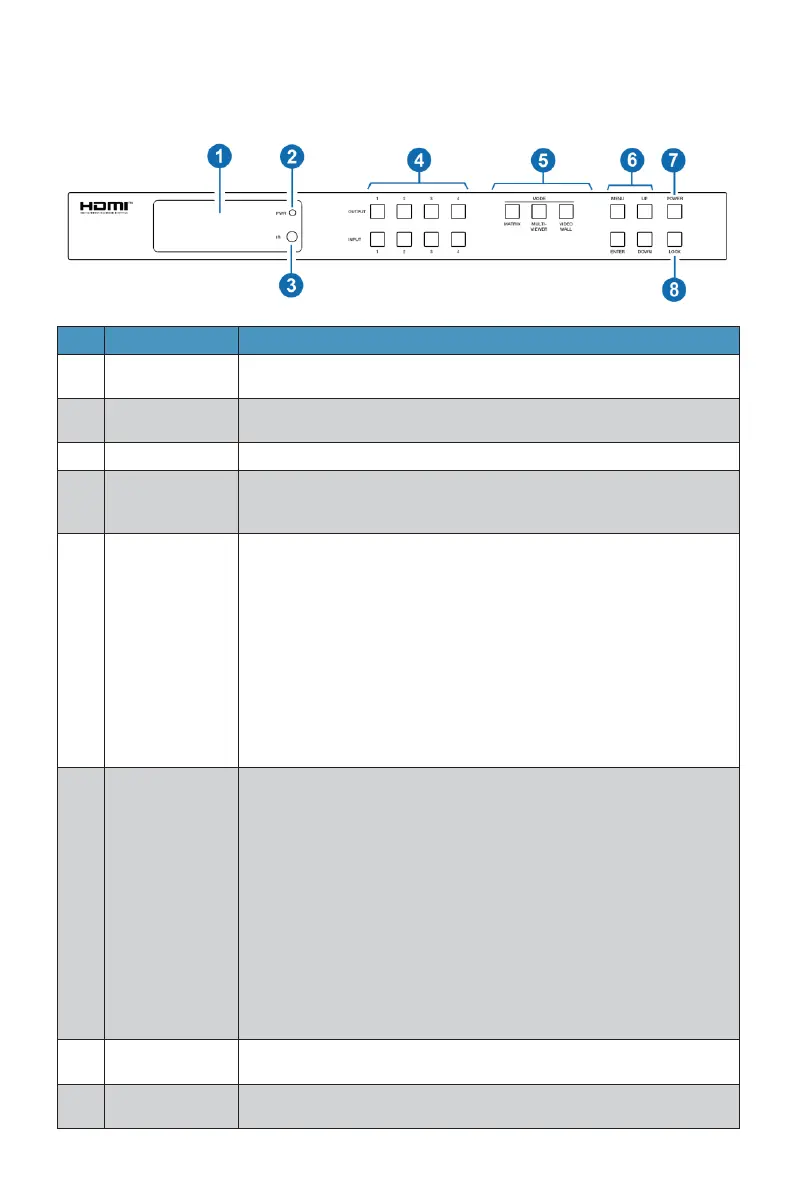

5.1 Front Panel
NO.
Name
Function Description
1
LCD screen
Display matrix switching status, input / output port, EDID, Baud rate, IP
Address, etc.
2
PWR LED
The LED is on green when the device is working. The LED is on red
when the device is on standby.
3
IR
IR signal receiver, receiving the signal from the IR remote.
4
INPUT / OUTPUT
buttons
You need to press an output button (1~4) firstly and then press an input
button (1~4) to select the corresponding input source for the output
port.
5
MODE
(MATRIX /
MULTIVIEWER
/ VIDEO WALL)
Press these buttons to select the corresponding video mode as required.
MATRIX: Press Matrix button to enter the matrix mode. You can
operate via front panel buttons, RS-232 commands and Web GUI to
set more details of the matrix mode.
MULTIVIEWER: Press MULTIVIEWER button to enter the multi-viewer
mode (The output buttons are used as Windows). You can operate via
front panel buttons, RS-232 commands and Web GUI to set more
details of the multi-viewer mode.
VIDEO WALL: Press VIDEO WALL button to enter the video wall mode
(The output buttons are used as Groups). You can operate via front
panel buttons, RS-232 commands and Web GUI to set more details
of the video wall mode.
6
MENU / ENTER
/ UP / DOWN
Take RESET, for example.
①
On the initial LCD display screen, press “MENU” button. There are
OUTPUT/MV/VW/INPUT/EXTAUDIO/SET items to be selected.
②
Press the “UP/DOWN” button to select "SET" item.
③
Press the “ENTER” button to enter into the next level menu. There
are LCD ONTIME/BAUD RATE/IP INFO/BG PATTERN/REBOOT/
RESET items to be selected.
④
Press the “UP/DOWN” button to select "RESET" item.
⑤
Press the “ENTER” button to confirm the selection.
⑥
Press the “ENTER” button, and then it will prompt: SUCCESS!
Note:
• Pressing the “MENU” button will return to the previous menu.
• In any level menu, it will return to the initial display screen if no
operation goes on within 10 seconds.
7
POWER button
Long press the button for 1 second to enter the standby mode, then
short press it to wake up the device.
8
LOCK button
Short press the button to lock front panel buttons (Except the power
button); press it again to unlock.
