13. RS-232 Control Command

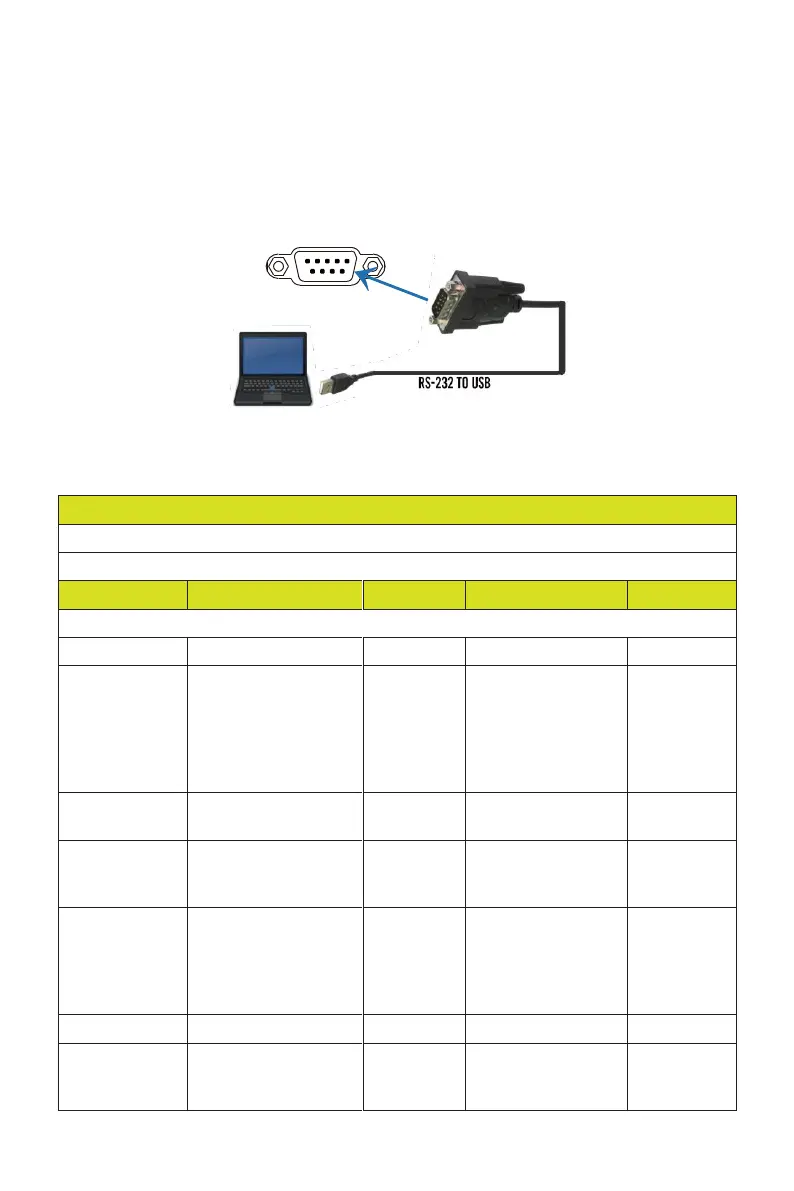

The product also supports RS-232 control. You need a serial cable with RS-232
male head and DB9 transfer USB male head. The RS-232 head of the serial cable is
connected to the RS-232 control port with DB9 at the rear of the Matrix, and the USB
head of the serial cable is connected to a PC. The connection method is as follows:
RS-232
Then, open a Serial Command tool on PC to send ASCII command to control the Matrix.
The ASCII command list about the product is shown as below.
ASCII Command
Serial port protocol. Baud rate: 115200, Data bits: 8, Stop bits:1, Check bit: 0
x - Parameter 1, y - Parameter 2, z - Parameter 3, ! - Delimiter
Command Code
Function Description
Example
Feedback
Default
System Setting
help!
List all commands
help!
r status!
Get device current
status
r status!
get the unit all status:
power, beep, lock, in/
out connection, video/
audio crosspoint,
edid, scaler, network
status
r type!
Get device model
r type!
4x4 hdmi seamless
matrix
r fw version!
Get firmware version
r fw version!
mcu fw version: x.xx.
xx
web gui: x.xx.xx
s power z!
Power on/off the device,
z=0~1 (z=0 power off,
z=1 power on)
s power 1!
power on
system initializing...
initialization finished!
mcu fw version x.xx.
xx
r power!
Get current power state
r power!
power on /power off
s beep z!
Enable/disable buzzer
function, z=0~1 (z=0
beep off, z=1 beep on)
s beep 1!
beep on
beep off
beep off
