19 / 38

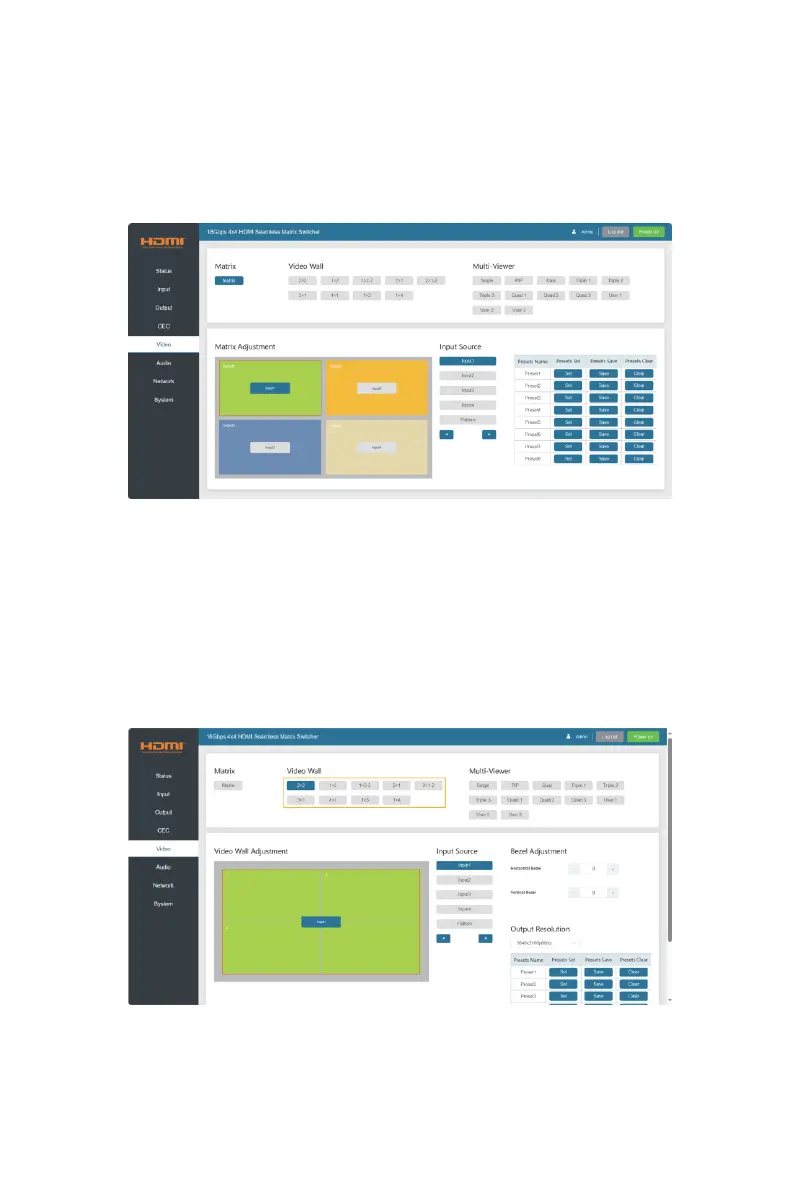

■ Video Page
You can set the video mode on this page. There are three modes: Matrix, Video Wall
and Multi-Viewer. In each mode, you can set, save and clear preset scenarios if needed,
supporting up to 8 presets. The preset name can be modified (max length: 32 characters).
①
Matrix: Click to select Matrix mode.
In matrix mode, you can select an output (1~4) firstly, and then select an input source
(1~4) which will appear on the selected output area. One route of video output
configuration is completed.
Note: You can drag and drop any input source on the right to the corresponding
output easily and quickly.
②
Video Wall: Click the buttons to select a splicing screen mode. There are 9 modes
to be selected.
In video wall mode, you can select a window (1~4) firstly, and then select an input source
(1~4) which will appear on the selected output area. Click +/- to adjust the corresponding
Horizontal/Vertical Bezel (0-10). Set the output resolution for current output by clicking the
drop-down list.
