11 / 38

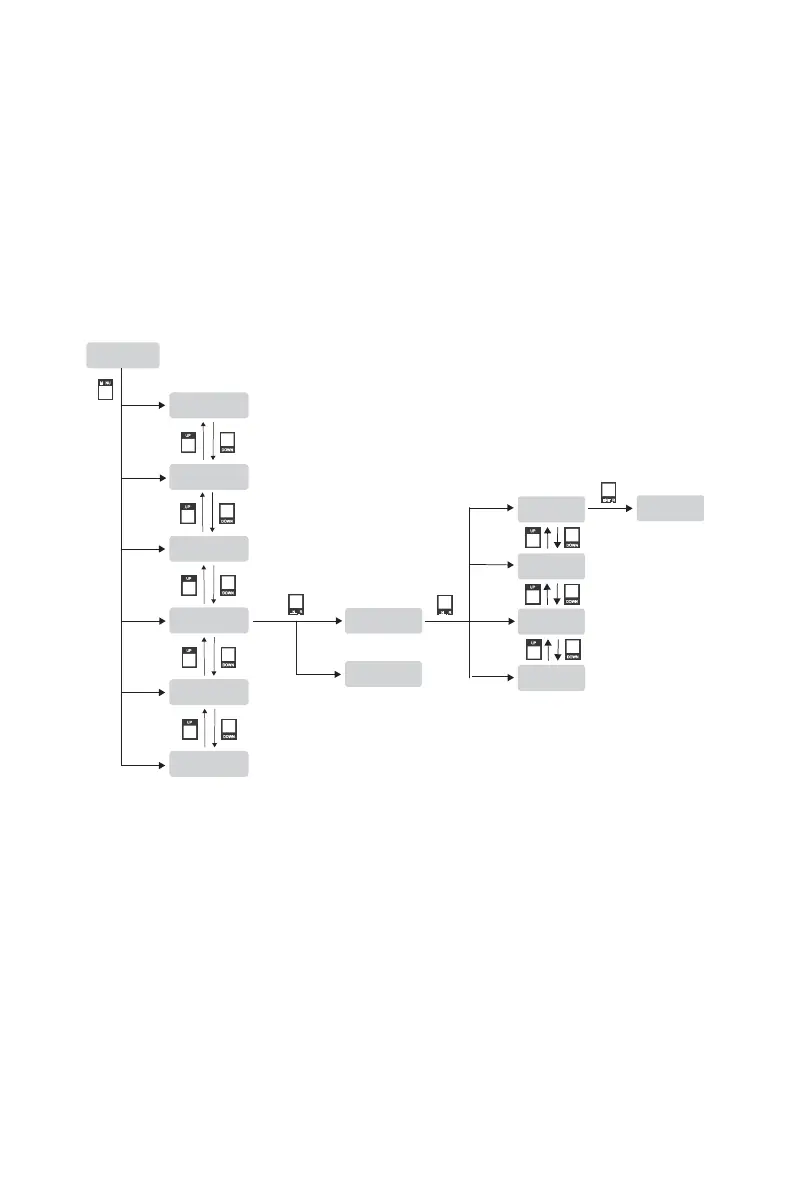

OUTPUT: 1 2 3 4
INPUT: 1 2 3 4
MENU
MENU -> OUTPUT
UP
DOWN
MENU -> MV
ENTE R
UP
INPUT -> EDID
IN1: 4K60, 2.0CH
INPUT -> EDID
IN1: 4K60, 2.0CH
DOWN
UP
DOWN
MENU -> VW
INPUT -> EDID
IN2: 1080P, 2.0CH
UP
UP
DOWN
DOWN
E
NTE R
E
NTE R
MENU -> INPUT
INPUT -> EDID
INPUT -> EDID
IN3: COPY OUT1
UP
UP
DOWN
DOWN
INPUT -> AUDIOSEL
INPUT -> EDID
IN4: 4K60, 5.1CH
MENU -> EXT-AUDIO
UP
DOWN
MENU -> SET
Note: Pressing the “MENU” button will return to the previous menu.
11. EDID Management
This Matrix has 12 factory defined EDID settings, 2 user-defined EDID modes and 4
copy EDID modes. You can select defined EDID mode or copy EDID mode to input
port through front panel buttons, RS-232 control or Web GUI.
On-panel button operation: On the initial LCD display screen, press “MENU”
button to enter the first level menu, press “UP/DOWN” button to select INPUT, and
then press the “ENTER” button. Now the EDID item appears. Press the “ENTER”
button, and then press “UP/DOWN” button to select the EDID mode you need. Then
press “ENTER” button to confirm this operation.
RS-232 control operation: Connect the Matrix to PC with a serial cable, then open
a Serial Command tool on PC to send ASCII command “s input x EDID z!” to set
EDID. For details, please refer to “EDID Setting” in the ASCII command list of “13.
RS-232 Control Command”.
Web GUI Operation: Please check the EDID management in the “Input page” of “12.
Web GUI User Guide”.
