Je bekijkt pagina 10 van 41
8 / 38

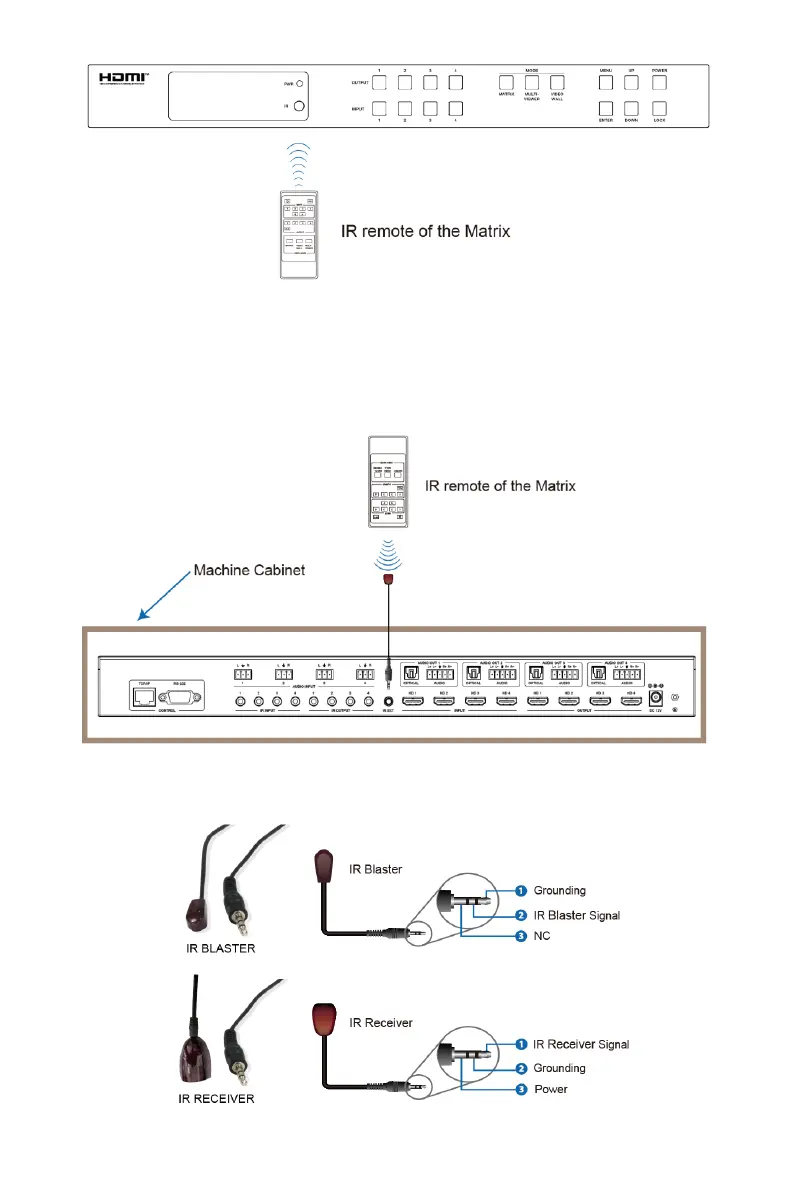

The second way: If the IR receiver window of the Matrix is blocked or the Matrix is
installed in a closed area out of infrared line of sight, the IR receiver cable can be
inserted to the “IR EXT” port to receive the IR remote signal. The furthest distance of
using the IR remote is 5 meters when the IR remote is directly faced to the IR receiver
head, and 3 meters when the using angle is ± 45°. The diagram is shown as below.
7. IR Cable Pin Assignment
