4 / 21
5.2

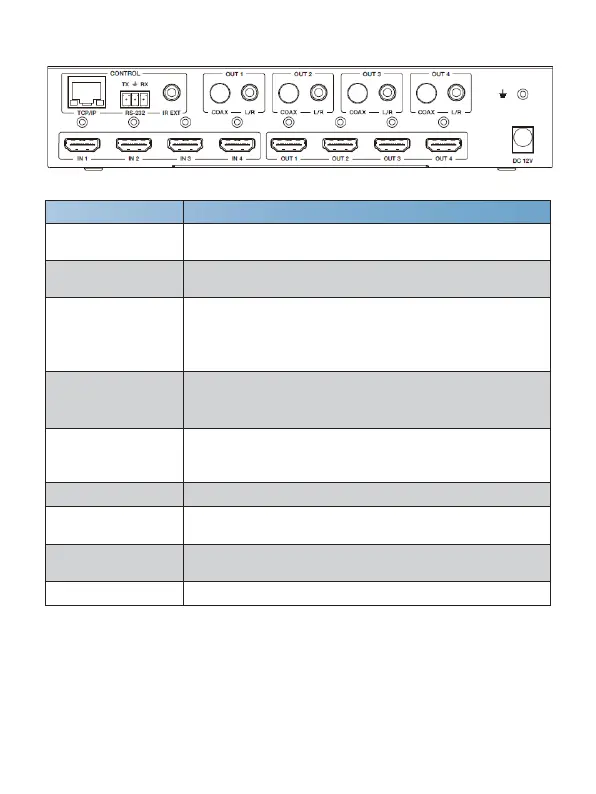

Rear Panel
Name
Function Description
TCP/IP
Control port for TCP/IP control or accessing the built-in
Web GUI.
RS-232
3-pin pluggable connector for RS-232 control of the
Matrix.
IR EXT
If the IR receiver window of the unit is blocked or the unit
is installed in a closed area out of infrared line of sight, the
IR receiver cable can be inserted to the “IR EXT” port to
receive the IR remote signal.
Coaxial Audio OUT 1
/ OUT 2 / OUT 3 /
OUT 4
RCA connector for coaxial audio output from HDMI OUT 1
/ OUT 2 / OUT 3 / OUT 4.
L/R Audio OUT 1 /
OUT 2 / OUT 3 /
OUT 4
3.5mm Mini-jack connector for stereo audio output from
HDMI OUT 1 / OUT 2 / OUT 3 / OUT 4.
GND
Screw terminal for earthing the Matrix.
IN 1/2/3/4 port
HDMI signal input port, connected to HDMI source device
such as DVD or PS4 with an HDMI cable.
OUT 1/2/3/4 port
HDMI signal output port, connected to HDMI display
device such as TV or monitor with HDMI cable.
DC 12V
DC 12V input for 12V 2.5A PSU.
