3.2

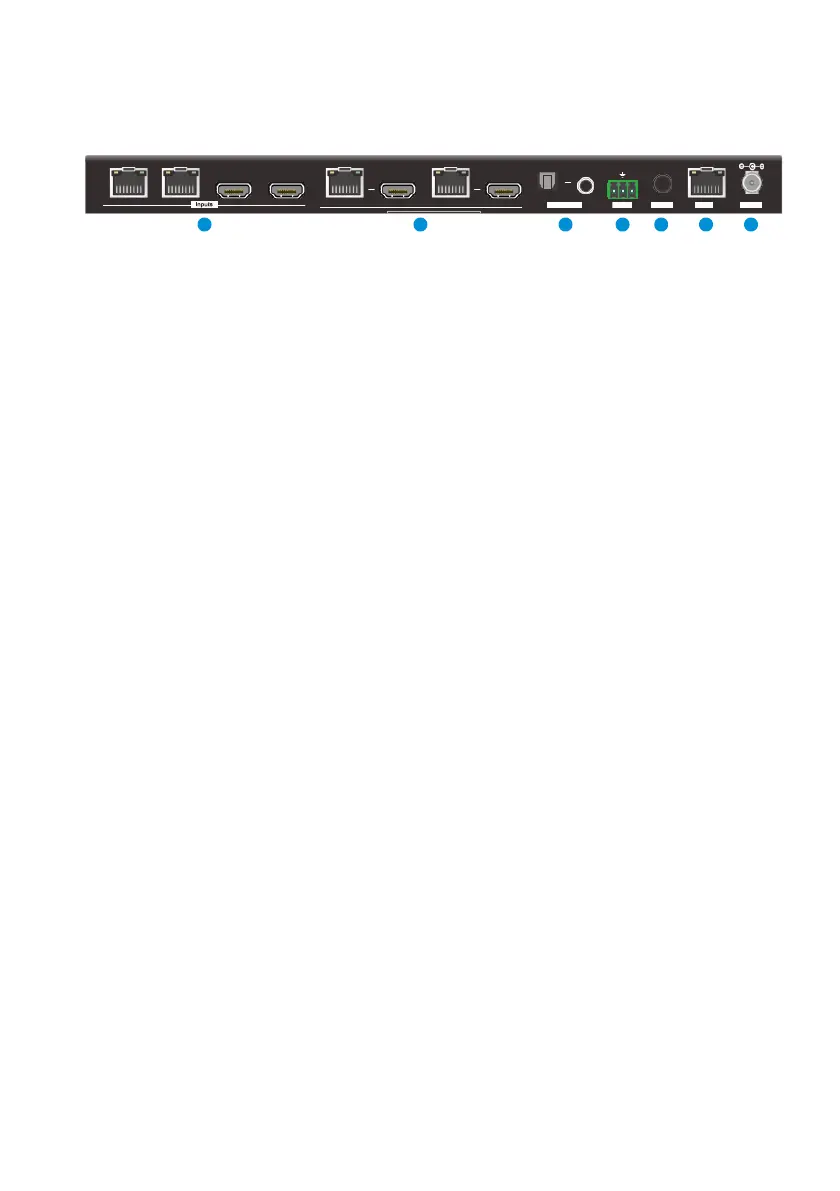

Rear Panel
① Inputs:
⚫
1~2: Connects to compatible HDBaseT transmitters.
⚫
3~4: Connects to HDMI source devices.
② Outputs:
⚫
HDBaseT Outputs: Connects to compatible HDBaseT receivers.
⚫
HDMI Outputs: Connects to HDMI display devices.
③ Audio Out: Connects to audio player for audio de-embedding from HDBT output A
or B.
④ RS232: Connects to a control device (e.g. PC) or a third-party device for RS232
control. Please refer to 8. RS232 Control for more details.
⑤ IR EYE: Connects to IR receiver to control the switcher by the IR remote. Please
refer to 7. IR Remote Control for more details.
⑥ TCP/IP: Connects to the control device (e.g. PC) to control the switcher by Web
GUI. Please refer to 6. GUI Control for more details.
⑦ DC 24V: DC connector for the power adapter connection.
Tx Rx
1
2
3
4
A
B
Outputs
Audio Out
RS232 IR EYE TCP/IP DC 24V
1
2
3
4
5
6
7
