3. Panel Description
3.1
Front Panel

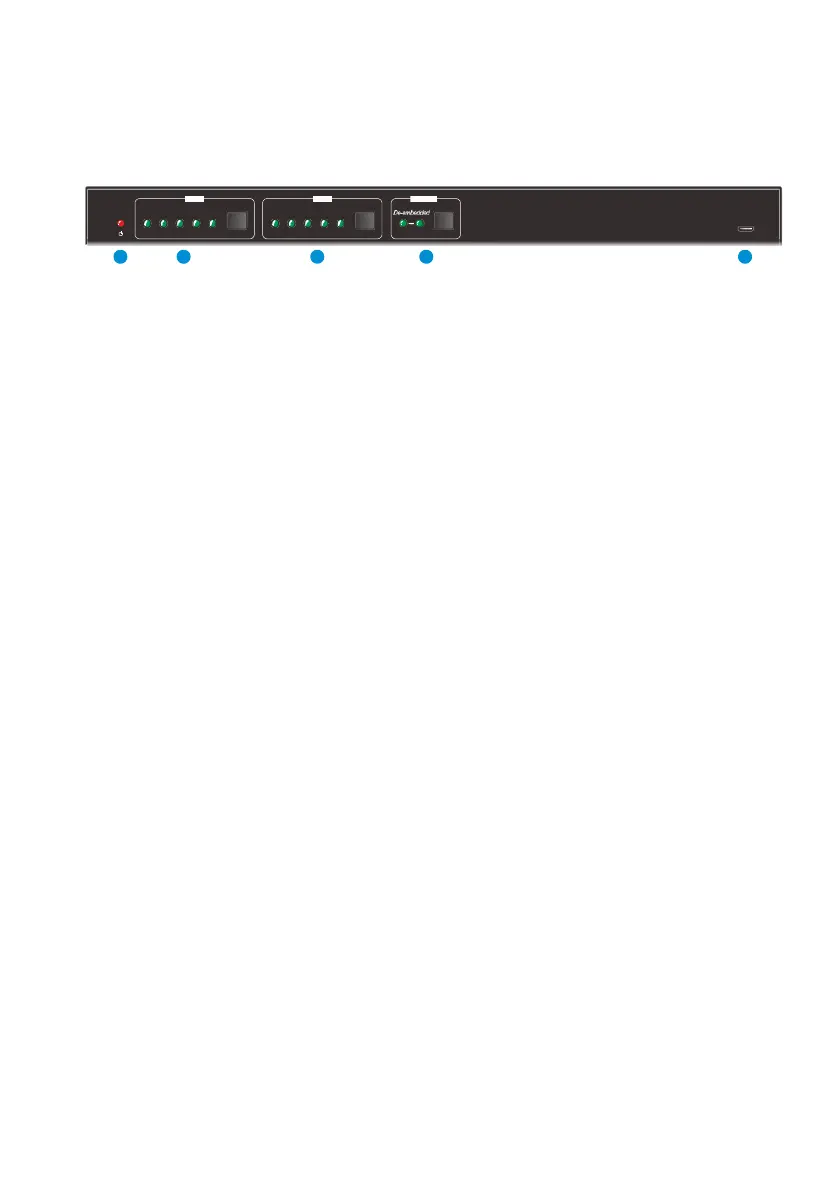

① Power LED: Illuminates solid red when the device is powered on.
② Out A:
⚫
Auto LED: Illuminates green in auto switching mode.
⚫
1-4: Four input LEDs, one of which illuminates green to indicate which source
is selected for output A.
⚫
Select/Auto/3s: Press the button repeatedly to cycle through the four video
inputs. Press and hold the button for 3 seconds to enter or exit auto switching
mode.
③ Out B:
⚫
Auto LED: Illuminates green in auto switching mode.
⚫
1-4: Four input LEDs, one of which illuminates green to indicate which source
is selected for output B.
⚫
Select/Auto/3s: Press the button repeatedly to cycle through the four video
inputs. Press and hold the button for 3 seconds to enter or exit auto switching
mode.
④ Audio Out:
⚫
A/B LED: Two audio source LEDs, one of which illuminates green to indicate
which audio source is selected for stereo and SPDIF audio outputs.
⚫
Select: Press the button repeatedly to cycle through the two audio sources for
audio de-embedding.
⑤ FW: Micro-USB port for firmware upgrade.
Out A
Out B
Audio Out
Auto/3s
Auto/3s
Auto 1 2 3 4 Select
Auto 1 2 3 4
Select
A B Sel ect
FW
1
2
3
4
5
