26
8.1.4 RS232 Pass-through Between Transmitter and Receiver

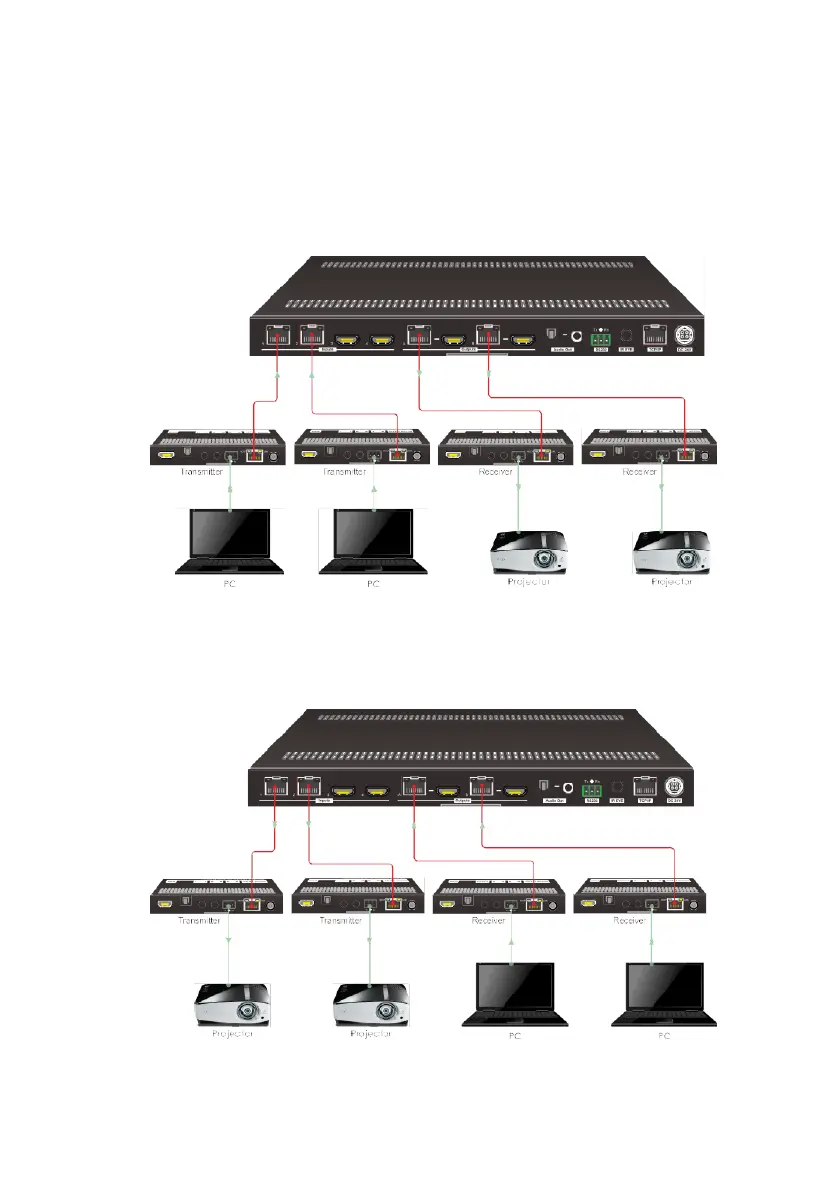

1) To control third-party device from transmitter location, first determine which
HDBaseT receiver is connected to. Next, connect a third-party device (e.g.
projector) to the RS232 port of HDBaseT receiver, then connect a PC to the RS232
port of HDBaseT transmitter, the connection diagram is shown as below:
2) To control third-party device from receiver location, first determine which HDBaseT
transmitter is connected to. Next, connect a third-party device (e.g. projector) to the
RS232 port of HDBaseT transmitter, then connect a PC to the RS232 port of
HDBaseT receiver, the connection diagram is shown as below:
