4/6
Number
Name
Function Description
4
EDID AUTO/
COPY/STD
▪ COPY: When the selector is dialed to the COPY position,
the product will copy the EDID setting of the HDMI OUT A
display device (If no HDMI OUT A capable EDID is detected,
the product will copy HDMI OUT B) to source devices, then
the source devices will send the signal to all HDMI outputs.
▪ STD: When the selector is dialed to the STD position, the
source devices will send fixed 1080P/60Hz EDID to all
HDMI outputs (audio for PCM 2.0 only).
5
IR
IR receiver window. It receives IR remote signal of this
product only.

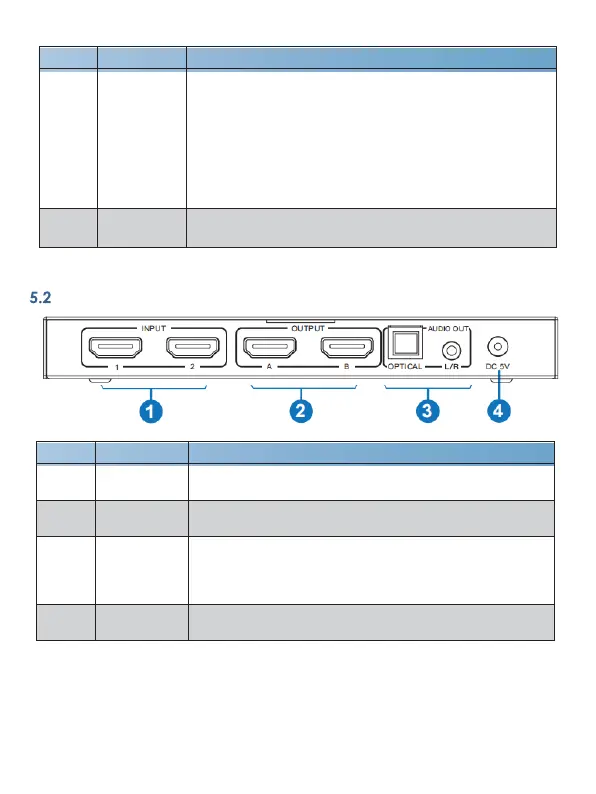

Rear Panel
Number
Name
Function Description
1
INPUT 1 / 2
Connect to HDMI sources device such as DVD player or
PS4 with an HDMI cable.
2
OUTPUT A / B
Connect to HDMI display device such as TV or monitor with
an HDMI cable.
3
AUDIO OUT
(OPTICAL /
L/R)
▪ OPTICAL: Optical audio output port. Connect to audio
amplifier.
▪ L/R: Analog audio output port. Connect to audio amplifier.
Notice: The audio output signal is from OUTPUT A port.
4
DC 5V
Plug the 5V/1A DC power supply into the unit and connect
the adapter to an AC outlet.
