DVDO-HDBVM-POE-1 4K HDBaseT 2.0 Extender with USB 2.0 User Manual
Installation and Wiring
Installation
Note: Before installation, please ensure the unit is disconnected from the power
source.
Steps to install the unit in a suitable location:

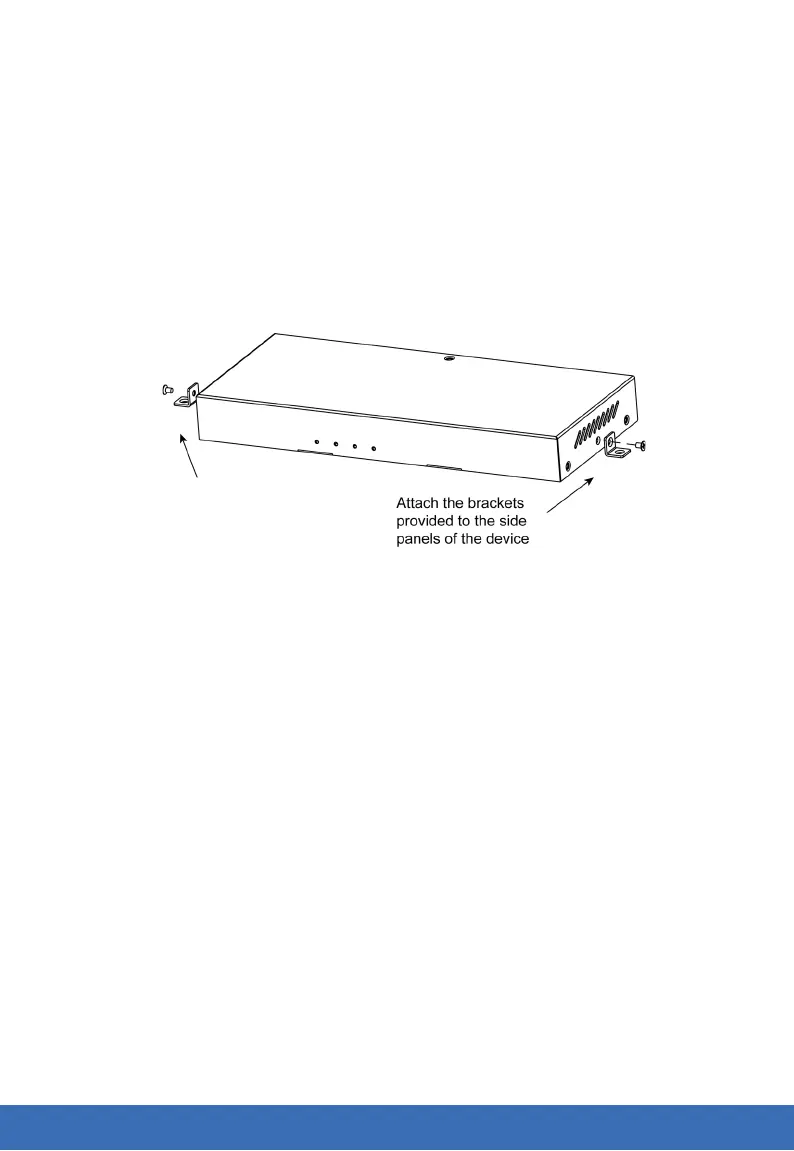

1. Position and install the mounting brackets of the transmitter with the two
mounting screws provided.
2. Repeat step 1 to install the receiver.
3. Mount and secure the transmitter and receiver to a surface or a suitable
location respectively with screws (provided by others).
Wiring
Warnings:
Before wiring, disconnect the power from all devices.
During wiring, connect and disconnect the cables gently.
Steps for device wiring:
1. Using quality HDMI cable, connect an HDMI source (such as Blu-ray,
games console, satellite/cable TV, media server etc.) to HDMI IN of the
Transmitter.
2. Connect a good quality, well-terminal Cat 5e/6/6a/7 cable between the
HDBT OUT of the Transmitter to the HDBT IN of the Receiver.
3. Using quality HDMI cable, connect the HDMI display device (TV, LED/LCD
display, projector, etc.) to the HDMI OUT of the Receiver.
