Quick Start
1.1 Interface

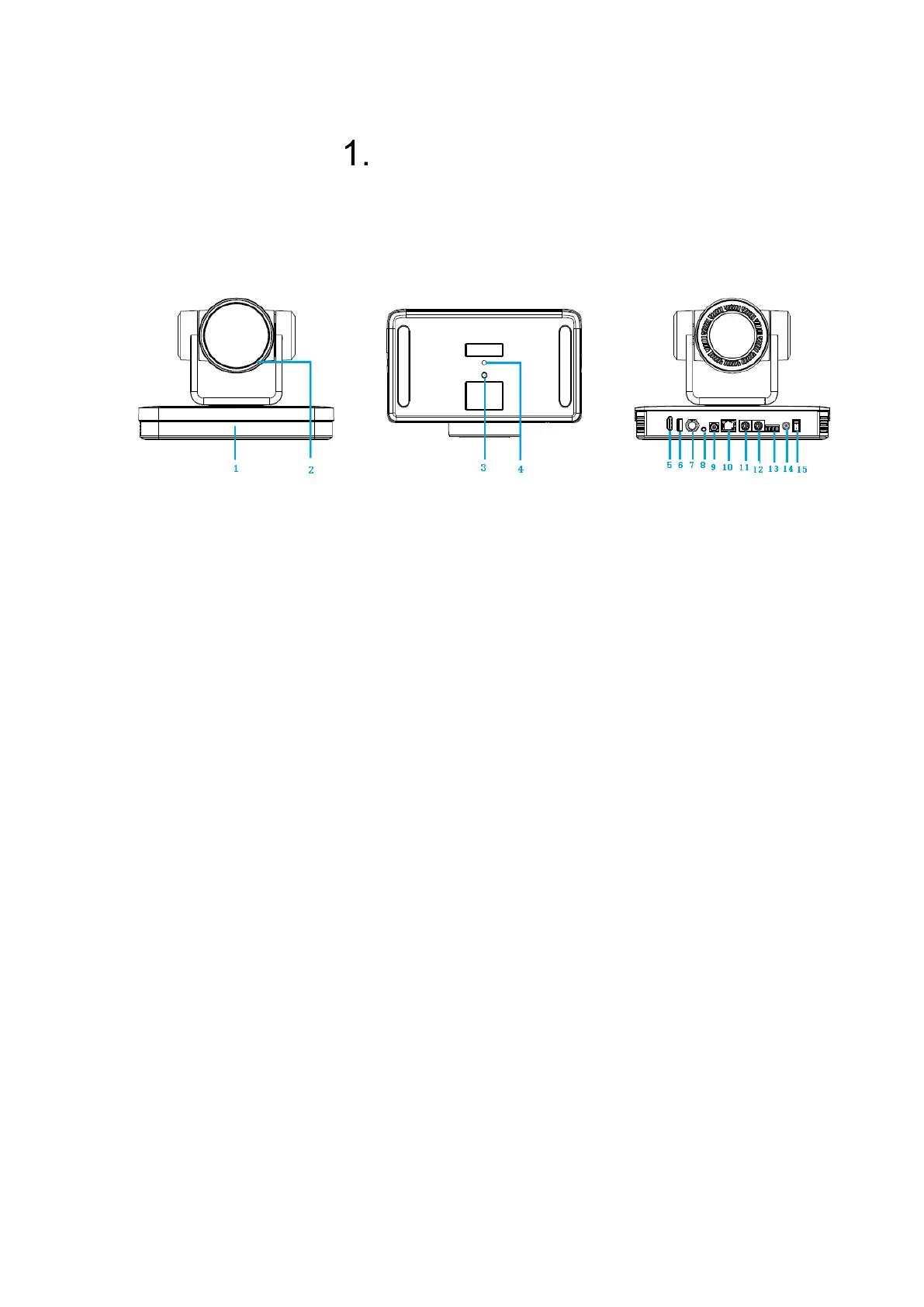

Figure1-1 Interface
Interface：
1. Receiving Light
6. USB2.0
11. RS232 Input
2. Lens
7. SDI
12. RS232 Output
3. Fixation Hole
8. Audio In
13. RS422/RS485 Jack
4. Tripod Screw Hole
9. Rotary Dip Switch
14. DC12V Power Socket
5. HDMI Jack
10. Network Jack
15. Power Switch
When using the camera, please put the plastic pad on the
center bottom of device
1.2 Power-on Self-Test
1.2.1 Power on
Connect device to power socket with DC12V power adapter.
1.2.2 Self-Test
After power on, the receiver light will start flashing and camera will do a brief pan-tilt
tour and return to the home position. When light stop flashing, the self-test is finished.
