5. Operation Controls and Functions

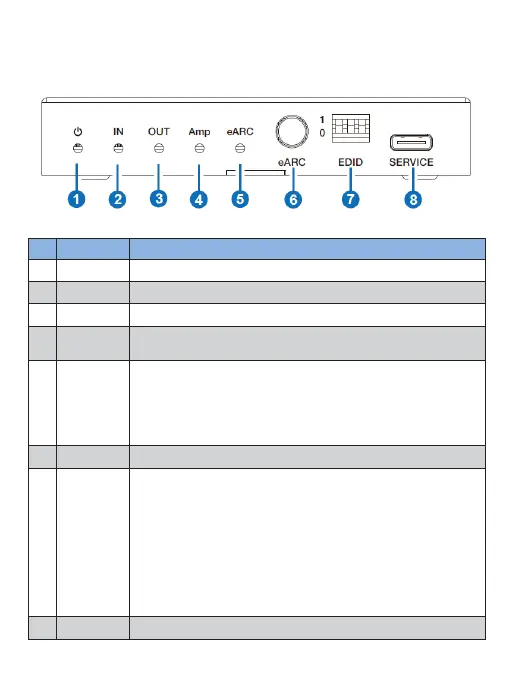

Front Panel
No.
Name
Function Description
1
Power LED
When the device is powered on, the red LED will be on.
2
IN LED
When the input signal is detected, the green LED will be on.
3
OUT LED
When the OUT port connects to a TV, the green LED will be on.
4
Amp LED
When the AUDIO OUT port connects to an amplifier, the green LED
will be on.
5
eARC LED
▪ On: The ARC/eARC function is turned on. CEC communication
and ARC/eARC is working properly.
▪ Flashing: The ARC/eARC function is turned on.
CEC communication and ARC/eARC is not working properly.
▪ Off: The ARC/eARC function is turned off.
6
eARC button
Press this button to enable or disable the eARC function.
Use the DIP switch to set EDID.
[DIP]=111: Copy OUT port sink video and audio EDID
[DIP]=110: Copy AUDIO OUT port sink video and audio EDID
7
EDID DIP
switch
[DIP]=101: FRL12G_8K_HDR, 2.0CH
[DIP]=100: FRL12G_8K_HDR, 5.1CH
[DIP]=011: FRL12G_8K_HDR, 7.1CH
[DIP]=010: FRL10G_8K_HDR, 2.0CH
[DIP]=001: FRL10G_8K_HDR, 5.1CH
[DIP]=000: FRL10G_8K_HDR, 7.1CH
8
SERVICE
Firmware update and debug port.
