3
when it is HDCP 1.4, or off when no HDCP.
5. POWER: Micro USB port for power cord connection. DVDO-4KSGA-1
must be powered on when it is used as a signal generator. When
DVDO-4KSGA-1 is used as a display emulator, it can be powered by
HDMI source, so the power cord connection is no required, if the HDMI
source has no enough power, both of the SIG LED and HDCP LED will
blink.

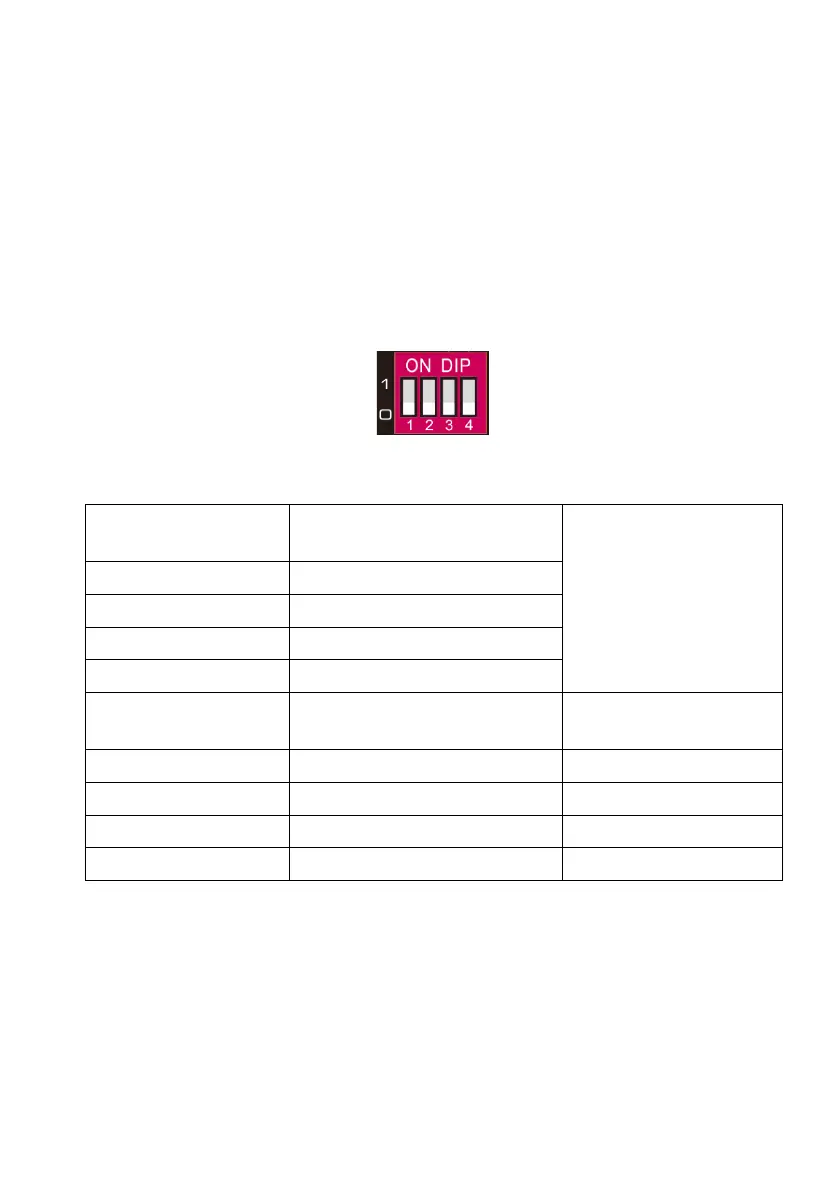

6. DIP SWITCH: When DVDO-4KSGA-1 is used as a HDMI signal
generator, switch 1 & 2 are used for built-in EDID (video) selection, and
switch 3 & 4 are used for HDCP content selection.
There are four switches (1~4). The switch represents “0” when in the lower
position, and it represents “1” while putting the switch in the upper position.
Switch Status (1
& 2)
EDID
00
4K@60Hz 4:4:4
01
4K@60Hz 4:2:0
10
4K@30Hz 4:4:4
11
1080p@60Hz/3D
Switch Status (3
& 4)
HDCP
Test Pattern
00
HDCP 2.2
Red Screen
01
HDCP 1.4
Green Screen
10
HDCP OFF
Blue Screen
11
HDCP OFF
AlternateWB
System Diagram
