Setup
Operating Instructions D888 e-con - 00.0 - 12/2023 195
7.15.3 Connecting the sewing light transformer

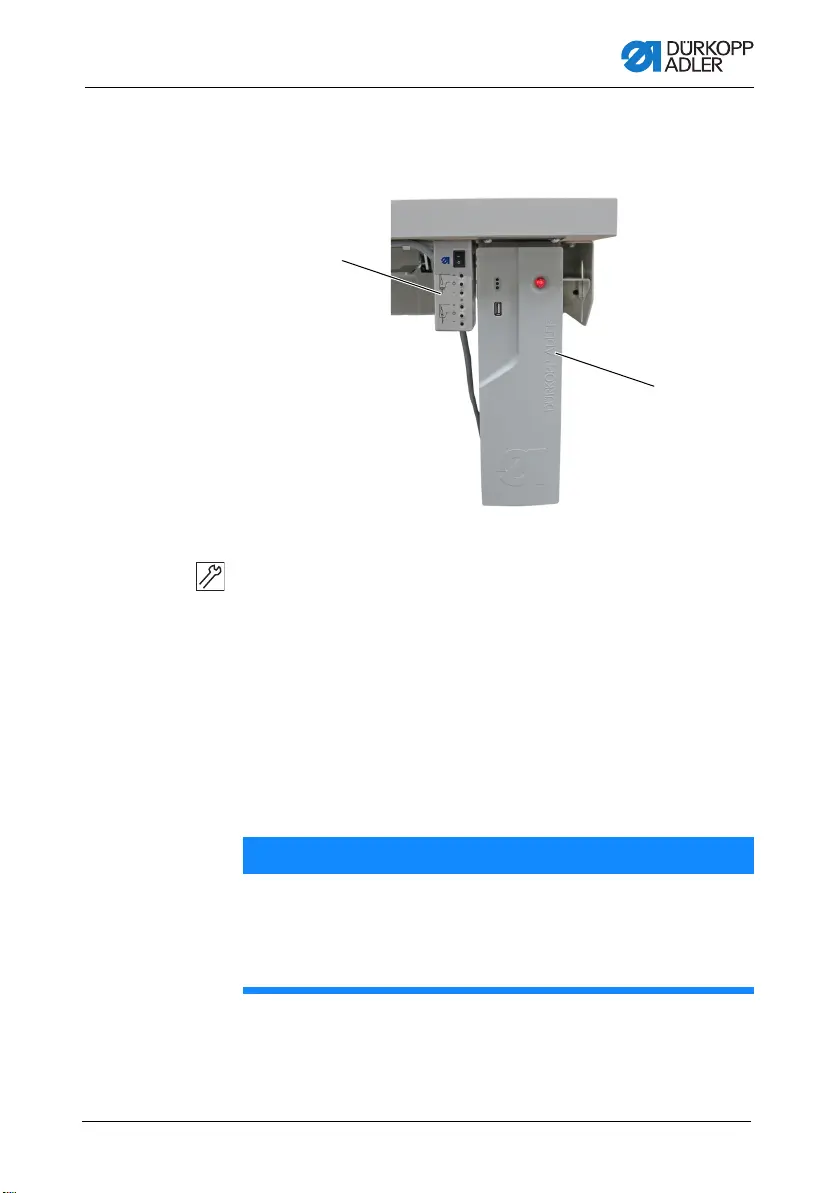

Fig. 108: Connecting the sewing light transformer
To connect the sewing light transformer:
1. Switch off the machine.
2. Screw the sewing light transformer (1) in place next to
the control (2) under the tabletop.
3. Connect the sewing light transformer (1) as specified in
the wiring diagram (
Service Instructions).
7.16 Pneumatic connection (optional)
(1) - Sewing light transformer (2) - Control
①
②
NOTICE
Property damage from oily compressed air!
Oil particles in the compressed air can cause malfunctions of
the machine and soil the sewing material.
Ensure that no oil particles enter the compressed air supply.
