Setup
Operating Instructions D888 e-con - 00.0 - 12/2023 193

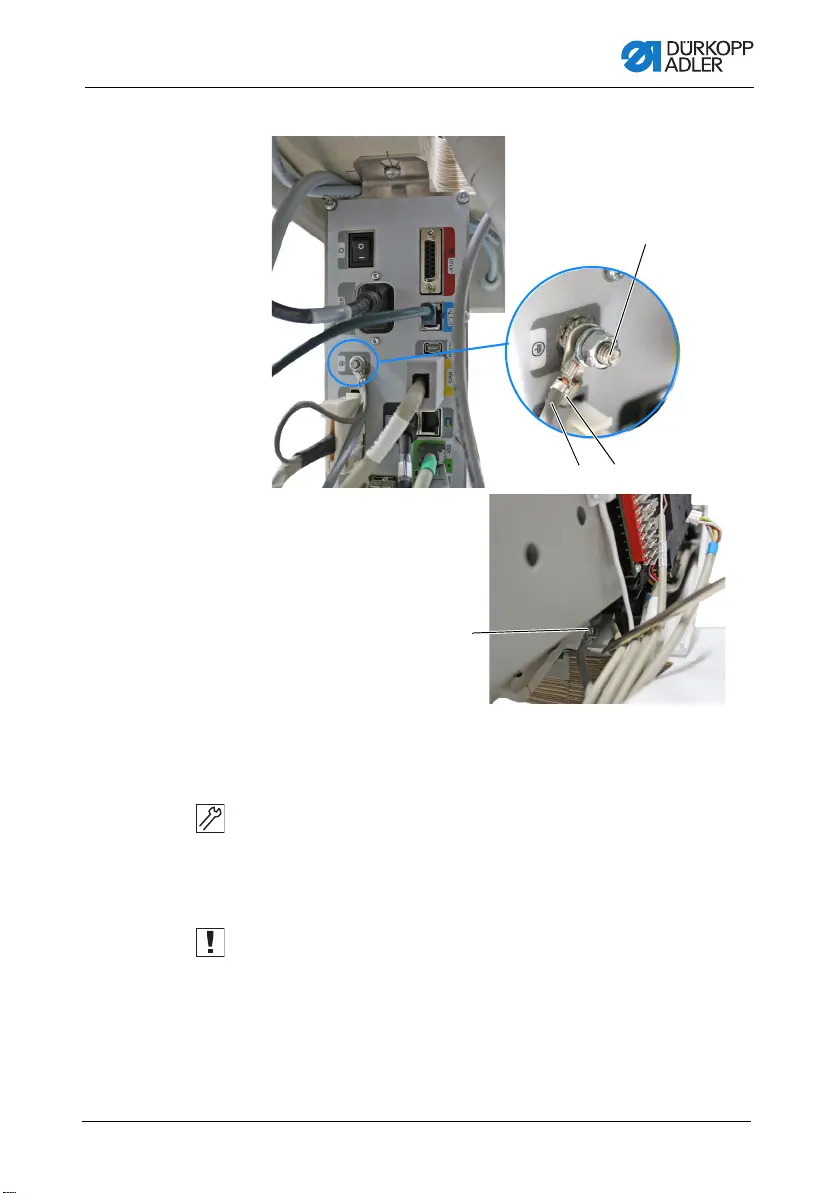

Fig. 107: Establishing equipotential bonding
To establish equipotential bonding:
1. Connect the ground cable to the port on the switch box (1).
2. Feed the ground cable through the hole in the tabletop.
3. Connect the ground cable to the port on the machine head (4).
Important
To establish equipotential bonding, you need to assemble the nec-
essary components to the connection on the control in the following
order: Locking washer, ground cable of the machine head (3), ground
cable of the motor (2), washer, nut.
(1) - Control connection
(2) - Motor ground cable
(3) - Ground cable
for the machine head
(4) - Connection
to the machine head
①
②
③
④
