Setup
190 Operating Instructions D888 e-con - 00.0 - 12/2023

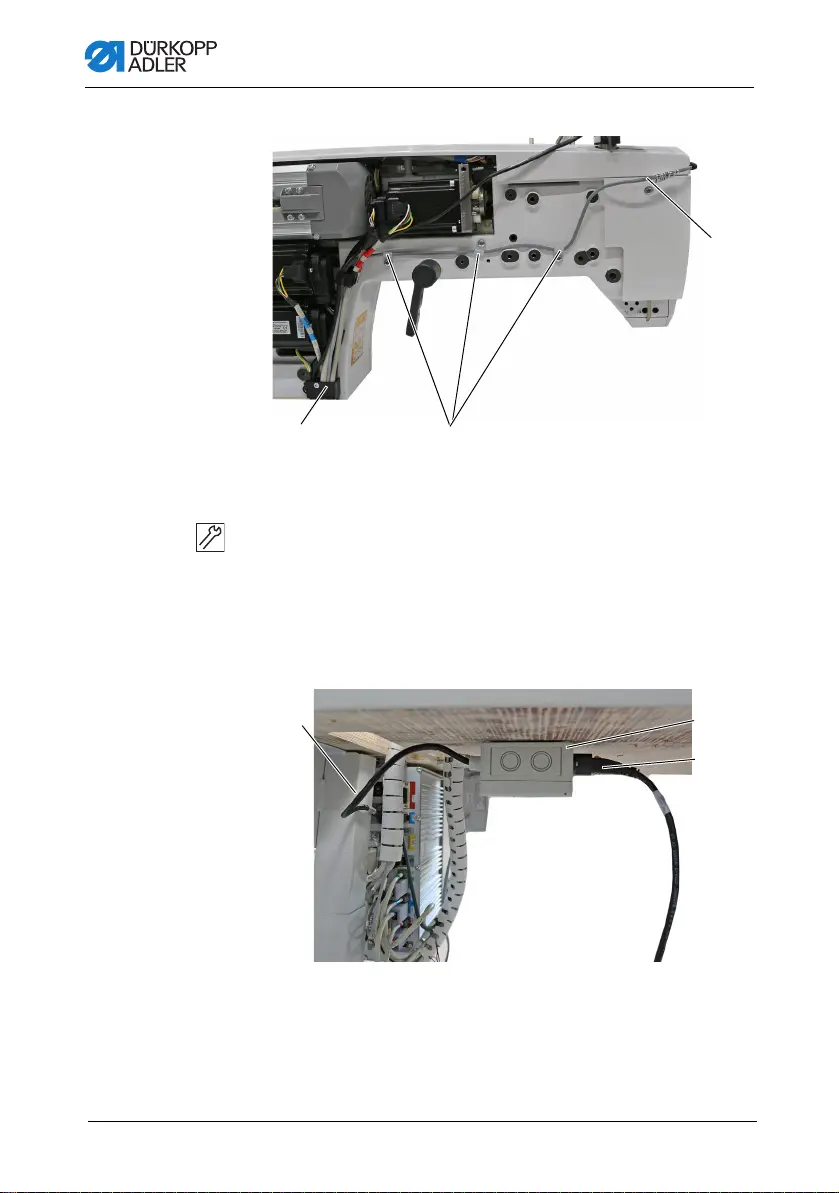

Fig. 104: Assembling the LED sewing light (3)
5. Lay the cable (9) inside the machine arm using the clips (8).
6. Lay the cable (9) through the guide (7) under the tabletop.
7. Assemble covers (1) and (2).
Cut out a corner of the cover (2) to keep the cable (9) from
becoming damaged.
Fig. 105: Assembling the LED sewing light (4))
8. Screw the junction box (12) under the tabletop, paying atten-
tion to the length of the cables (10).
(7) - Guide
(8) - Clips
(9) - Cable
⑨
⑦⑧
(10)- Cable
(11)- Power cable
(12)- Junction box
⑫
⑩
⑪
