Setup
186 Operating Instructions D888 e-con - 00.0 - 12/2023
To change the handwheel:
1. Loosen the screws (3).
2. Remove the large handwheel (1).
3. Position the small handwheel (5) at the pulley in such a way
that the pin (4) protruding on the inside of the handwheel fits
into the matching hole (2) in the pulley.
4. Tighten the small handwheel (5) using the screws (3).
5. Place the cover (6) and tighten it using the screws (7).
The handwheel has been changed.
7.12 Assembling the knee button

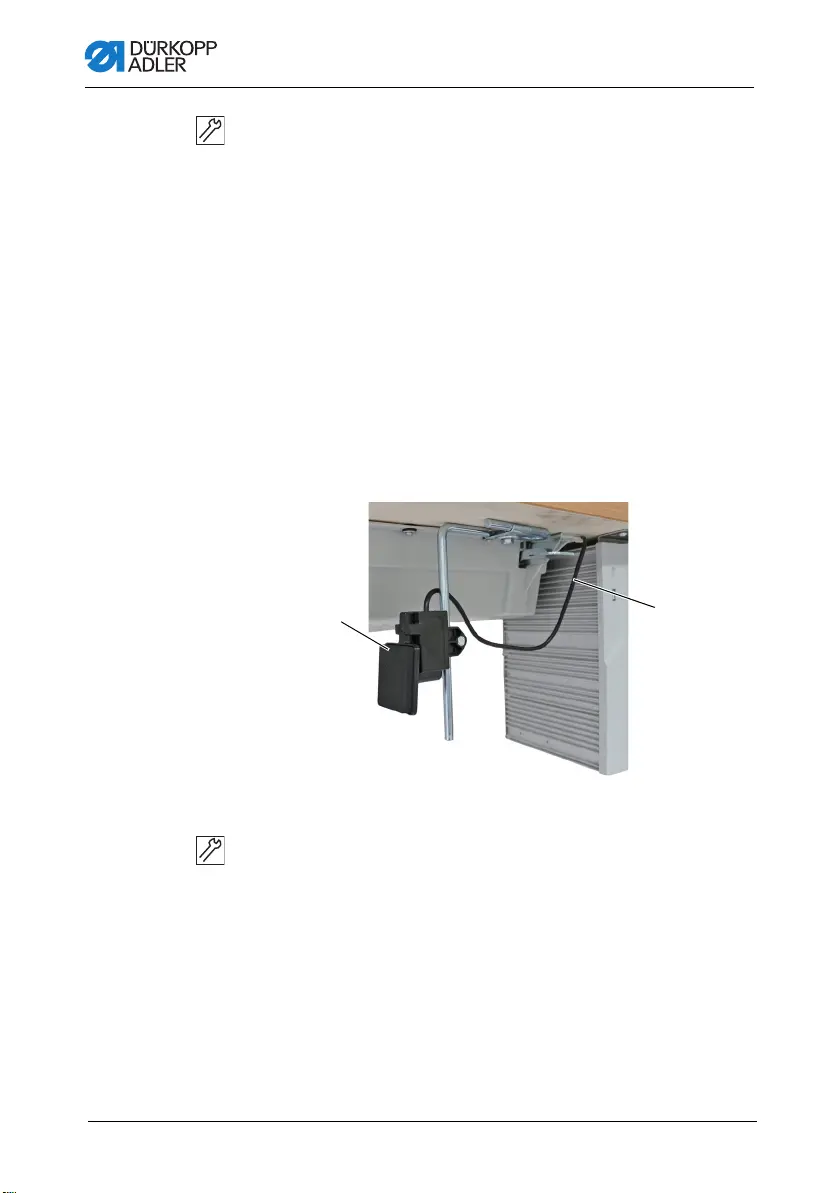

Fig. 100: Assembling the knee button
To assemble the knee button:
1. Screw the knee button (1) in front of the oil sump firmly in
place under the tabletop.
2. Guide the connecting cable (2) to the back between the oil
pan and the control.
3. Insert the plug of the knee button in the socket X 100 of
the control cabinet.
(1) - Knee button (2) - Connecting cable
①
②
