Setup
184 Operating Instructions D888 e-con - 00.0 - 12/2023
7.10 Assembling the tilt sensor

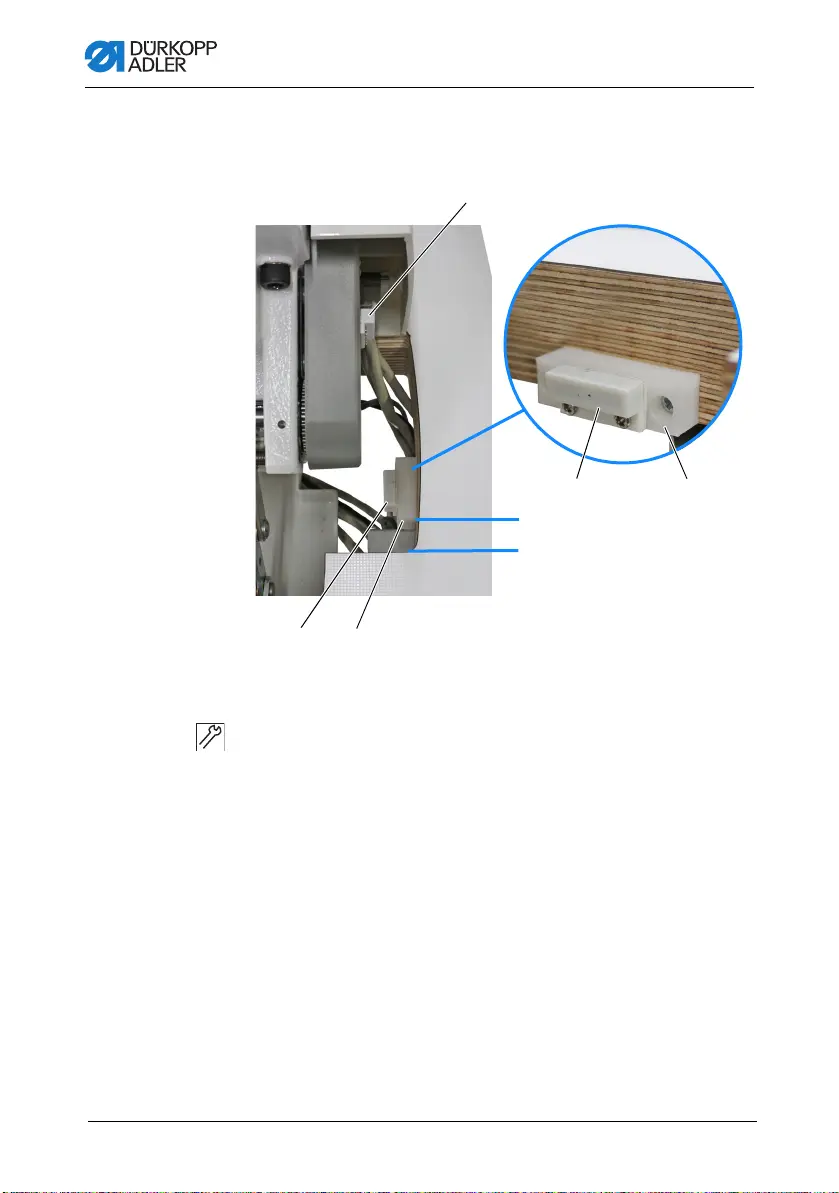

Fig. 98: Assembling the tilt sensor
To assemble the tilt sensor:
1. Tilt the machine head.
The sensor (1) has been pre-assembled on the sewing head.
The magnet (2) and wood screws are in the bag that contains
the bobbins.
2. Tighten the distance piece (3) in the tabletop cutout using
wood screws.
• Tighten the distance piece (3) at the lower edge of the slot
in the tabletop and at a distance of approx. 35 mm from
the side edge.
3. Tighten the magnet (2) in the center on the distance piece (3).
(1) - Sensor
(2) - Magnet
(3) - Distance piece
①
②③
②③
35 mm
