Setup
204 Operating Instructions D867 e-con - 00.0 - 06/2023
7.16.1 Establishing equipotential bonding
The grounding wire conducts away any static charging of the
machine head.

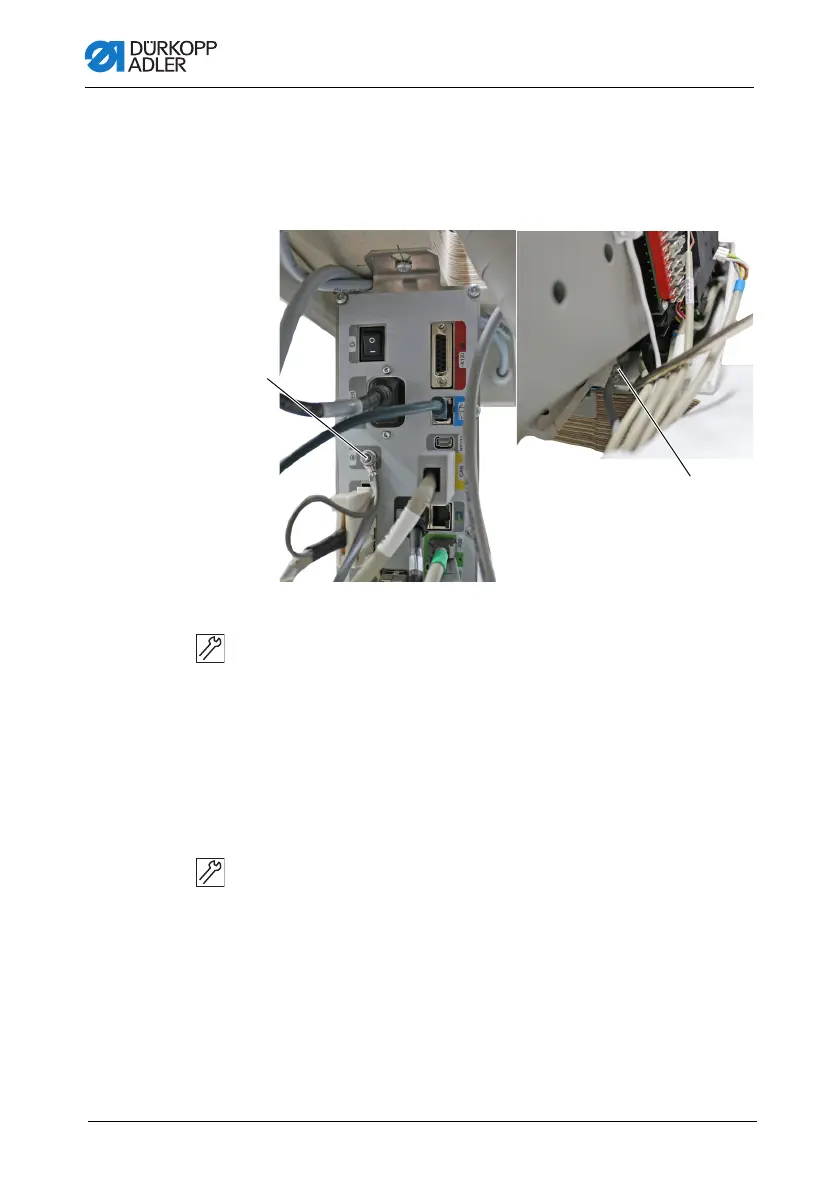

Fig. 112: Establishing equipotential bonding
To establish equipotential bonding:
1. Tilt the machine head.
2. Feed the equipotential bonding cable from the connection (1)
on the rear side of the control through the slot in the tabletop
and fix it in place at the connection of the base plate (2).
7.16.2 Connecting the control
To connect the control:
1. Connect the control as specified in the wiring diagram
(Service Instructions).
(1) - Control connection (2) - Base plate connection
①
②
