Setup
200 Operating Instructions D867 e-con - 00.0 - 06/2023
10. Assemble covers (1) and (2).
Cut out a corner of the cover (2) to keep the cable (8) from
becoming damaged.

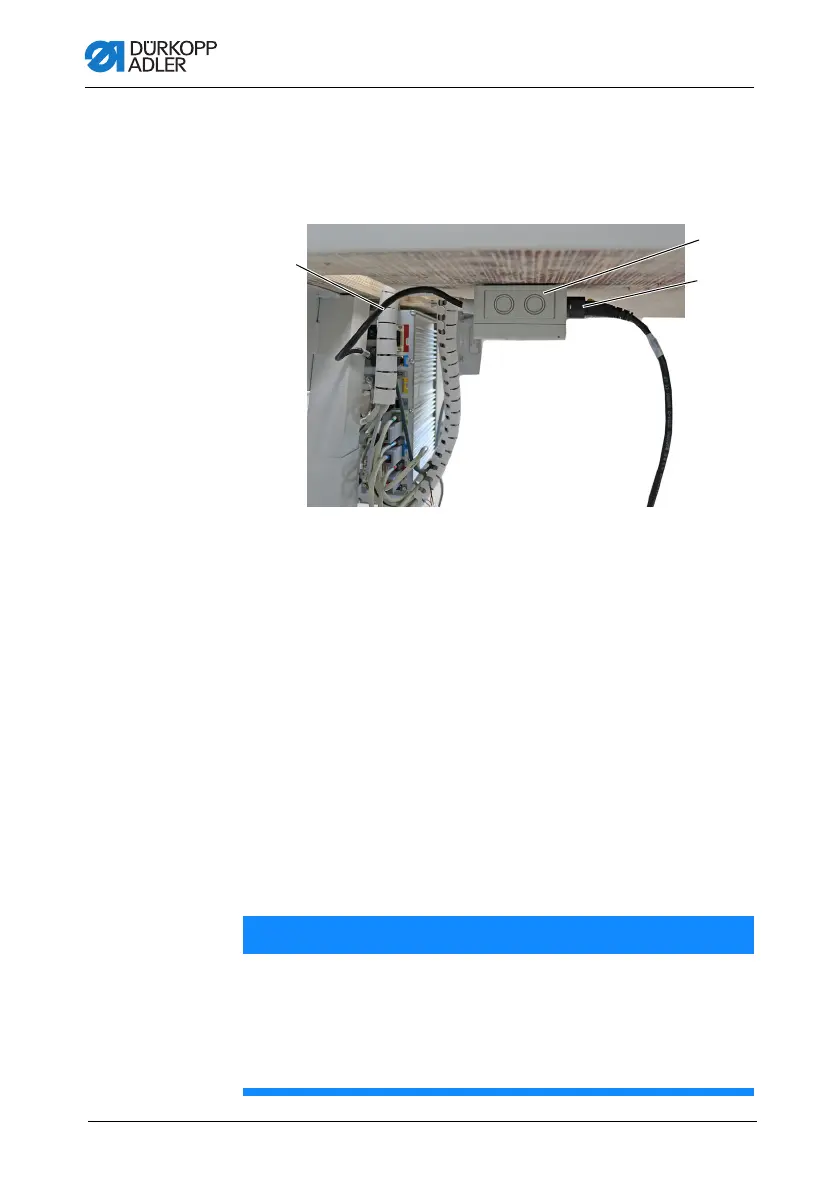

Fig. 108: Assembling the sewing light with table clamp (3)
11. Screw the junction box (11) under the tabletop, paying atten-
tion to the length of the cables.
12. Pull the power cable (10) out of the control and insert it into
the junction box (11).
13. Insert the cable (9) of the junction box (11) into the control.
14. Connect the cable (8) to the control as shown in the wiring
diagram (Service Instructions).
15. Tighten the cover of the junction box (11) and lay the cables
neatly.
7.15 Assembling the sewing light with table clamp
(9) - Cable
(10)- Power cable
(11)- Junction box
NOTICE
Property damage may occur!
Cables may sustain damage and impair the operation of
the machine.
Always lay the cables so as not to create any chafing or
pinching points.
⑨
⑪
⑩
